Hyundai Santa Fe: Front Strut Assembly. Components and Components Location
Components
|

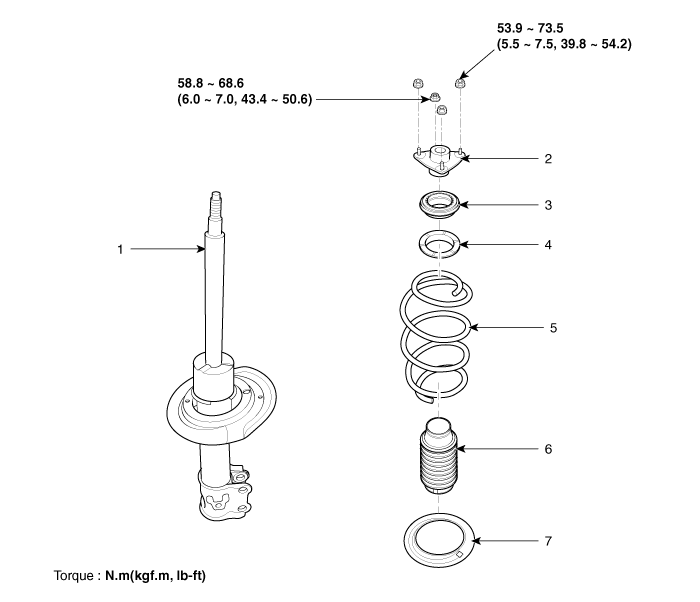

1. Strut assembly 2. Insulator 3. Bearing 4. Spring upper pad |
5. Spring 6. Dust cover 7. Spring lower pad |
Front Alignment. Repair procedures
Front wheel alignment When using a commercially available computerized wheel alignment equipment to inspect the front wheel alignment, always position the vehicle on a level surface with the front wheels ...
Front Strut Assembly. Repair procedures
Removal 1. Remove the front wheel and tire (A) from front hub . Tightening torque: 88.2 ~ 107.8 N.m (9.0 ~ 11.0 kgf.m, 65.0 ~ 79.5 lb-ft) Be careful not to damage to the hub bolts when removing the front ...
