Hyundai Santa Fe (DM): Interior lamp bulb replacement
WARNING
Prior to working on the Interior Lamps, ensure that the “OFF” button is depressed to avoid burning your fingers or receiving an electric shock.

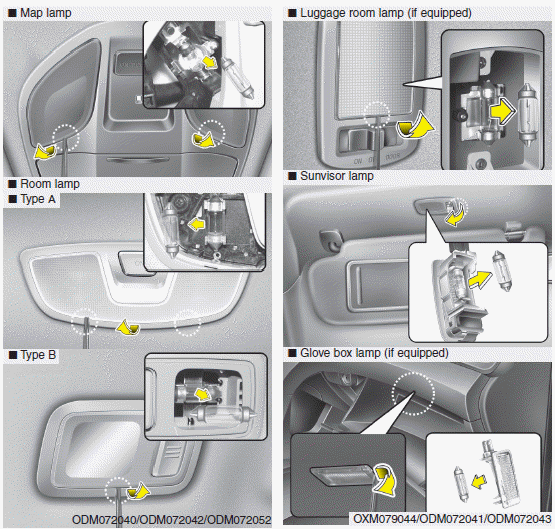

1. Using a flat-blade screwdriver, gently pry the lens from the interior lamp
housing.
2. Remove the bulb by pulling it straight out.
3. Install a new bulb in the socket.
4. Align the lens tabs with the interior lamp housing notches and snap the lens
into place.
CAUTION
Use care not to dirty or damage lens, lens tab, and plastic housings.
