Hyundai Santa Fe: Brake Pedal. Components and Components Location - Brake System - Brake SystemHyundai Santa Fe: Brake Pedal. Components and Components Location

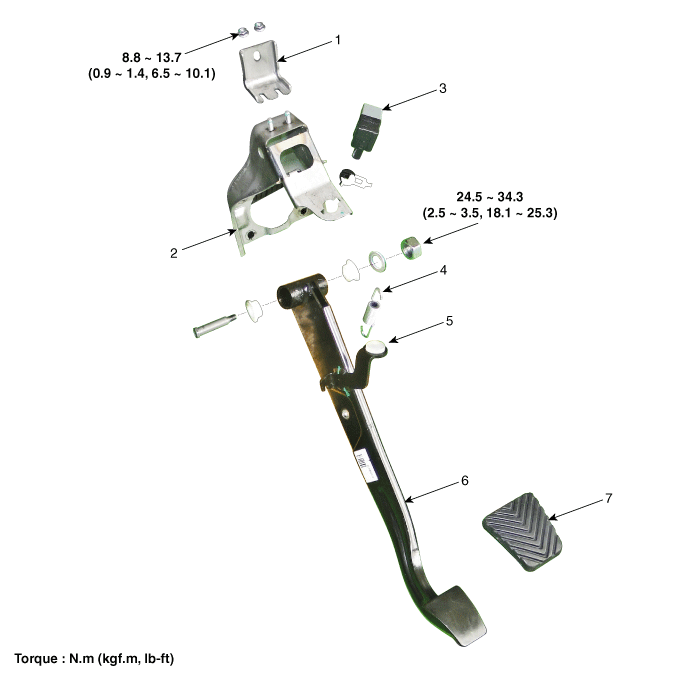

Components

1. Cowl bracket
2. Brake pedal member assembly
3. Stop lamp switch
4. Return spring
5. Brake pedal stopper
6. Brake pedal arm
7. Brake pedal pad


Brake Line. Repair procedures
Removal 1. Disconnect the brake fiuid level switch connector, and remove the reservoir cap. 2. Remove the brake fluid from the master cylinder reservior with a syringe. Do not spill brake fluid on the ...

Brake Pedal. Repair procedures
Removal 1. Turn ignition switch OFF and disconnect the negative (-) battery cable. 2. Remove the crash pad lower panel. 3. Remove the shower duct (A). 4. Disconnect the stop lamp switch connector (A). ...
