Hyundai Santa Fe: Components and Components Location - Parking Brake System - Brake SystemHyundai Santa Fe: Components and Components Location

Components (1)

1. Parking brake pedal
2. Equalizer assembly
3. Parking brake cable

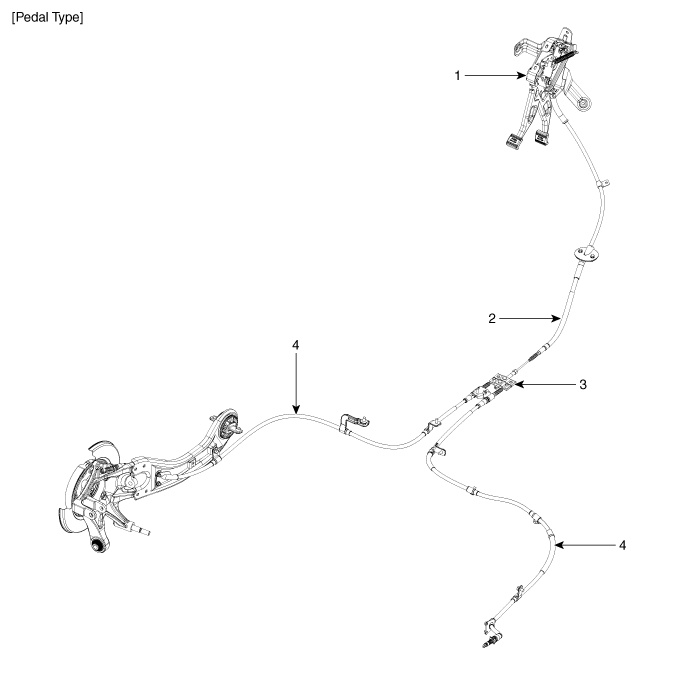

Components (2)

1. Parking brake pedal assembly
2. Front parking brake cable
3. Equalizer assembly
4. Rear parking brake cable

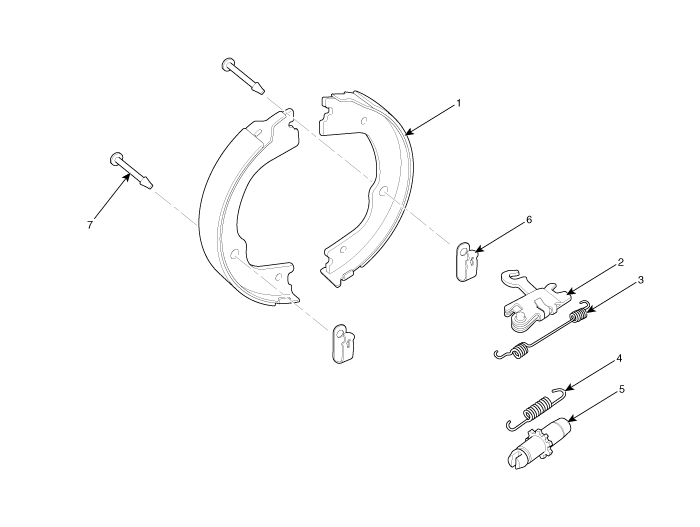

Components (3)

1. Brake shoe
2. Operating lever
3. Upper spring
4. Lower spring

5. Adjuster
6. Shoe hold down spring
7. Shoe hold down pin


Parking Brake Assembly. Repair procedures
Removal Parking Brake Shoe 1. Raise the vehicle, and make sure it is securely supported. 2. Remove the rear tire and wheel. 3. Remove the rear brake caliper and Rear disc brake. 4. Remove the parking brake ...
