Hyundai Santa Fe: Components and Components Location - ESC(Electronic Stability Control) System - Brake SystemHyundai Santa Fe: Components and Components Location

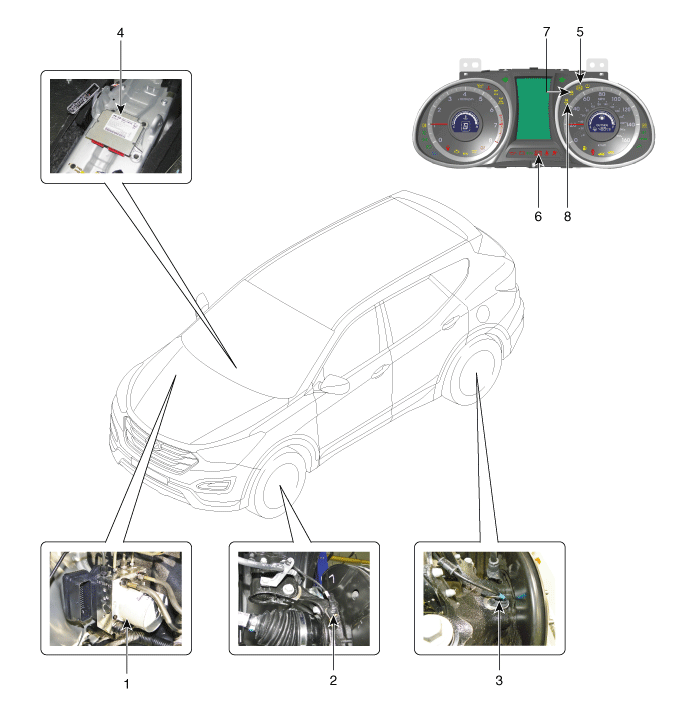

Components

1. HECU module
2. Front wheel speed sensor
3. Rear wheel speed sensor
4. Yaw rate & Lateral G sensor
 5. ABS Warning lamp
6. Parking brake/EBD warning lamp
7. ESC Function/Warning lamp
8. ESC OFF lamp
