Hyundai Santa Fe: Components and Components Location
Components
|

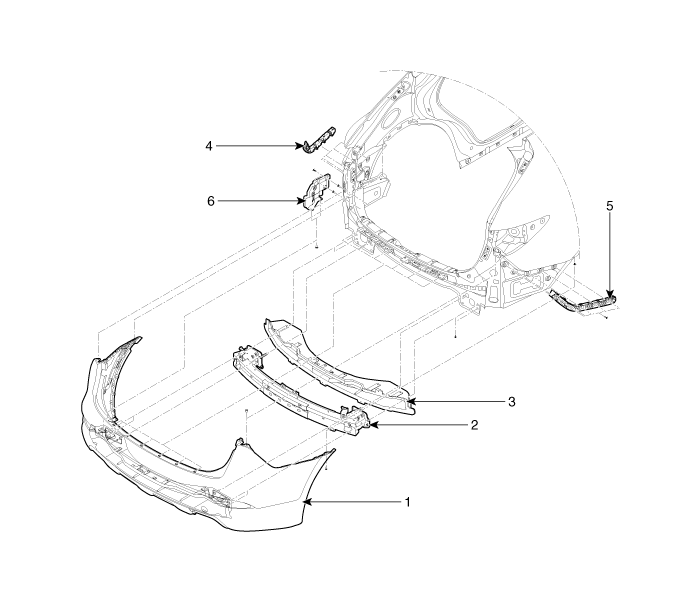

1. Rear bumper cover 2. Rear bumper beam assembly 3. Rear bumper beam cover |
4. Rear bumper side bracket [LH] 5. Rear bumper side bracket [RH] 6. Rear bumper lower side bracket |
Rear Bumper
...
Rear Bumper Cover. Components and Components Location
Component Location 1. Rear bumper cover ...
