Hyundai Santa Fe (DM): Components and Components Location
Components
|

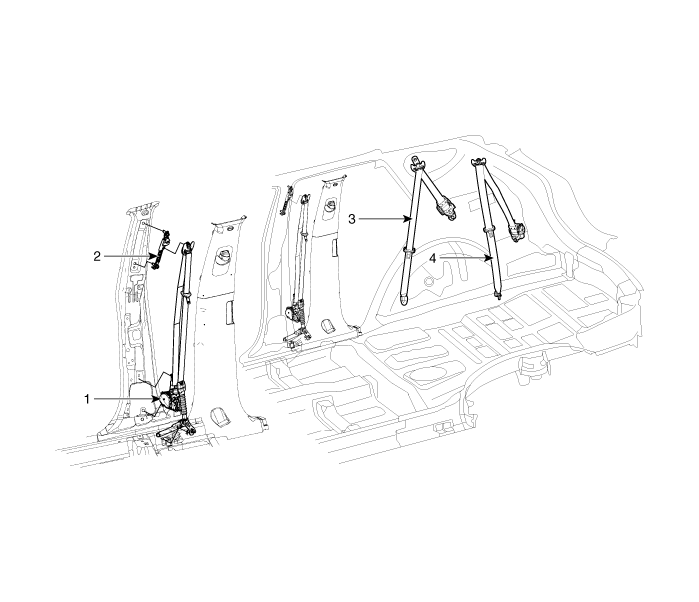

1. Front seat belt pretensioner / EFD system 2. Height adjuster |
3. Second row seat belt 4. Third row seat belt |
Front Seat Belt
...
Front Seat Belt Pretensioner. Components and Components Location
Component Location 1. Front seat belt pretensioner ...
