Hyundai Santa Fe: Components and Components
Location

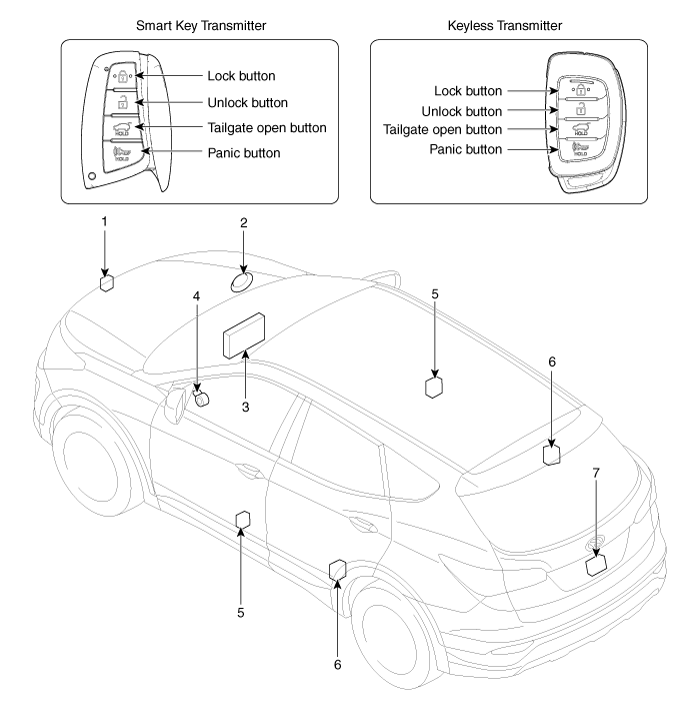

Component Location
|
1. Hood switch 2. Burglar horn 3. BCM & RF receiver 4. Key warning switch |
5. Front door lock actuator & switch 6. Rear door lock actuator & switch 7. Tailgate open switch |
Specifications
Specification Item Specification Power source 3V Operating temperature -20°C ~ +60°C (-4°F ~ +140°F) RF Modulation FSK LF Modulation ASK RF frequency 315MHz Battery CR2032 Transmissible distance 30m ...
Description and Operation
Description Burglar Alarm State [B/A State] B/A State Description DISARM 1. In "DISARM" state, no vehicle start inhibition. So, when door, hood, or Tailgate is opened, there is no alarm sound ...
See also:
Instrument Cluster. Components
and Components Location
Components Connector Pin Information No. Description No. Description 1 - 21 - 2 Illumination output 22 - 3 Rheostat down switch 23 4P output 4 Rheostat up switch 24 Immobilizer 5 AT N output 25 AT S output ...
Schematic Diagrams
Circuit Diagram ...
TPMS Sensor. Repair procedures
Replacement 1. Remove the valve core and deflate the tire. 2. Remove the side of the tire bead area from the wheel using tire changing machine . • The tire bead should be broken approx. 90° from the ...
