Hyundai Santa Fe: Components and Components Location

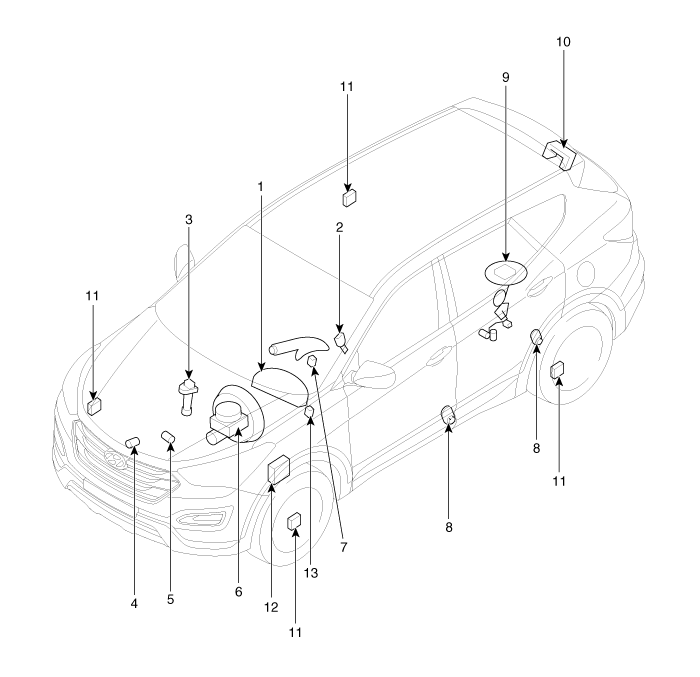

Component Location
|
1. Cluster assembly 2. Seat belt switch 3. Vehicle speed sensor 4. Engine coolant temperature sender 5. Oil pressure switch 6. Brake fluid level warning switch 7. Parking brake switch |
8. Door switch 9. Fuel gauge sender 10. Tailgate switch 11. Wheel speed sensor 12. ABS ECU 13. Active ECO switch |
Instrument Cluster. Components
and Components Location
Components Connector Pin Information No. Description No. Description 1 - 21 - 2 Illumination output 22 - 3 Rheostat down switch 23 4P output 4 Rheostat up switch 24 Immobilizer 5 AT N output 25 AT S output ...
