Hyundai Santa Fe (DM): Components and Components Location - Rear Glass Defogger - Body Electrical SystemHyundai Santa Fe (DM): Components and Components Location

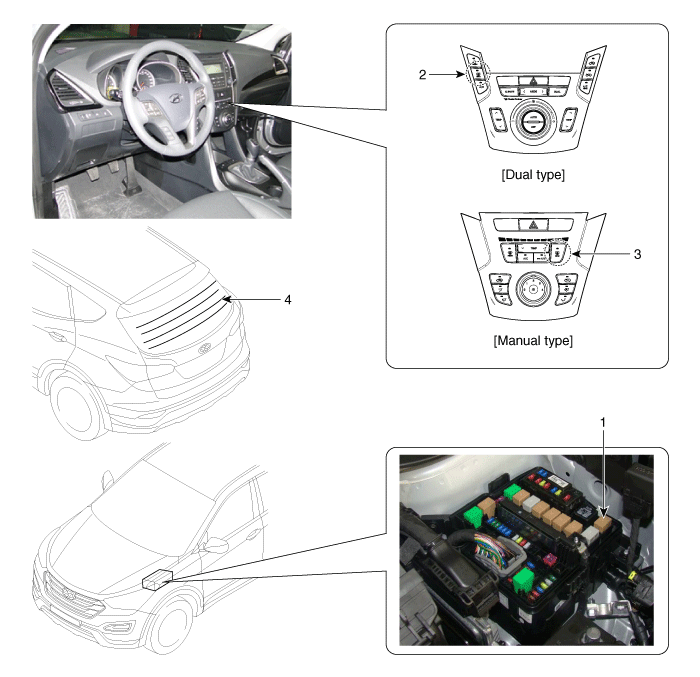

Component Location

1. Rear glass defogger relay (Buil-in engine room relay box)
2. Rear glass defogger switch (Dual type)
3. Rear glass defogger switch (Manual type)
4. Rear glass defogger
