Component Location

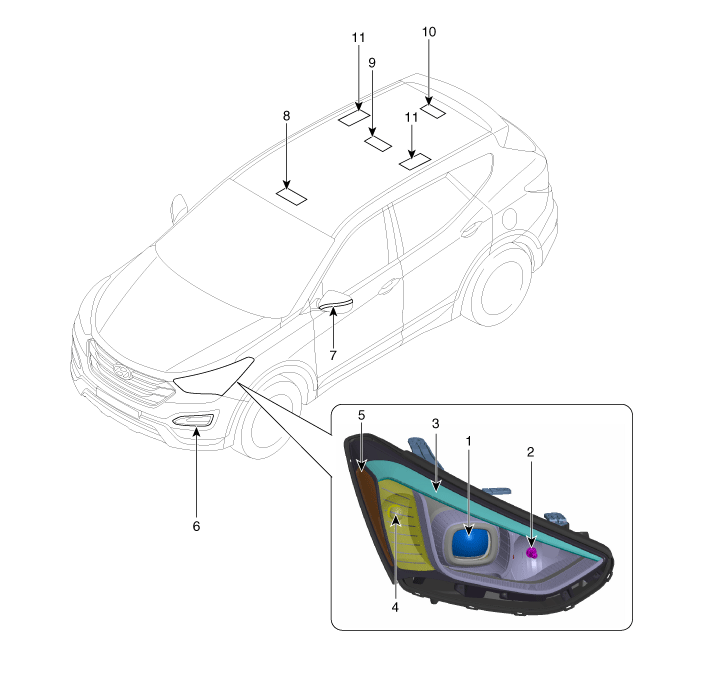

1. Head lamp (Low)
2. Head lamp (High)
3. Position lamp
4. Turn signal lamp
5. Side marker
6. Fog lamp
7. Turn signal lamp (Door mirror)
8. Overhead console lamp
9. Room lamp
10. Cargo lamp
11. Room lamp (Panorama sunroof only)

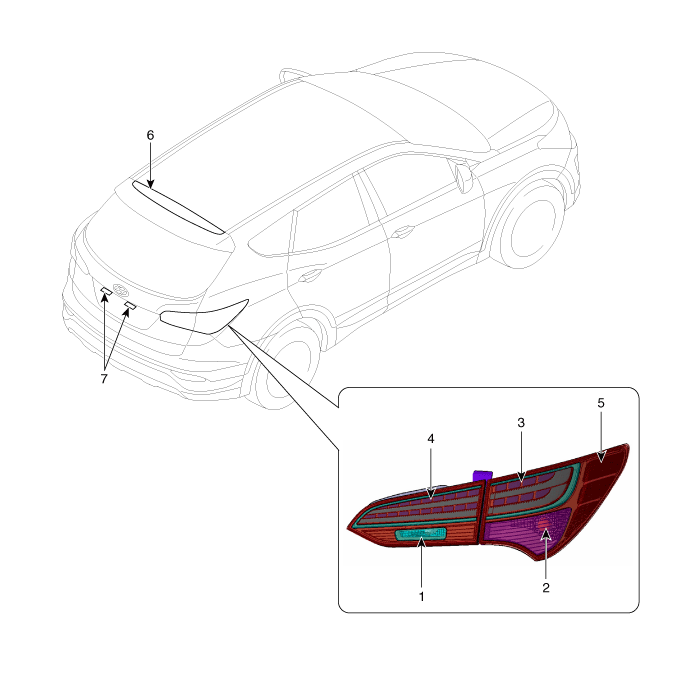

1. Back up lamp
2. Turn singal lamp
3. Stop/Tail lamp
4. Tail lamp
5. Side marker
6. High mounting stop lamp
7. License plate lamp


Specifications
Specifications Items Bulb Type Bulb Wattage (W) Front Head lamp Low H11 55 High H7 55 Turn signal lamp PY28W 28 Position lamp LED LED Side marker W5W 5 Fog lamp H8 35 Rear Rear combination lmap Turn signal ...

Head Lamps. Components and Components Location
Component 1. Head lamp high beam bulb 2. Dust cap (High) 3. Head lamp low beam bulb 4. Dust cap (Low) 5. Turn signal lamp bulb 6. Turn signal lamp socket 7. Side marker bulb 1. Head lamp high beam bulb ...
