Hyundai Santa Fe (DM): Head Lamps. Components and Components
Location - Lighting System - Body Electrical SystemHyundai Santa Fe (DM): Head Lamps. Components and Components Location

Component

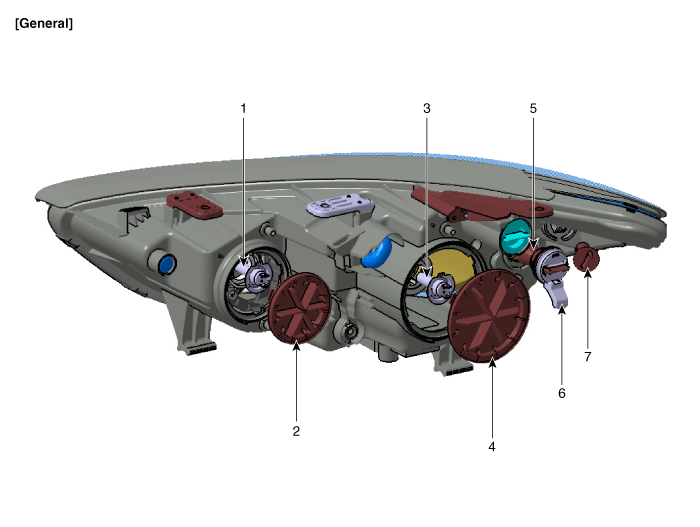

1. Head lamp high beam bulb
2. Dust cap (High)
3. Head lamp low beam bulb
4. Dust cap (Low)
5. Turn signal lamp bulb
6. Turn signal lamp socket
7. Side marker bulb

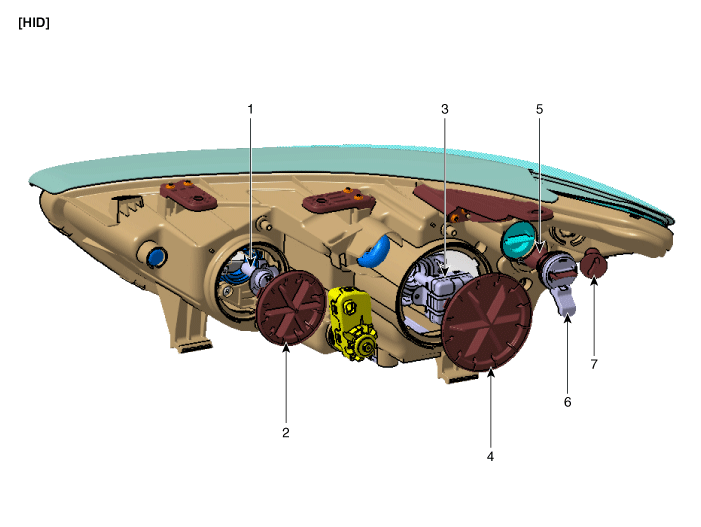

1. Head lamp high beam bulb
2. Dust cap (High)
3. Head lamp low beam bulb (HID) & ignitor
4. Dust cap (Low)
5. Turn signal lamp bulb
6. Turn signal lamp socket
7. Side marker bulb


Components and Components Location
Component Location 1. Head lamp (Low) 2. Head lamp (High) 3. Position lamp 4. Turn signal lamp 5. Side marker 6. Fog lamp 7. Turn signal lamp (Door mirror) 8. Overhead console lamp 9. Room lamp 10. Cargo ...

Head Lamps. Description and Operation
HID Head Lamp 1. Bulb (1) Elements Xenon gas: Xenon gas activates the initial reaction for rapid illuminating. Molybdenum electrode: anode arcing Metal halide salts: color composing component (2) Lightening ...
