Location - Auto Lighting Control System - Body Electrical SystemHyundai Santa Fe: Components and Components Location

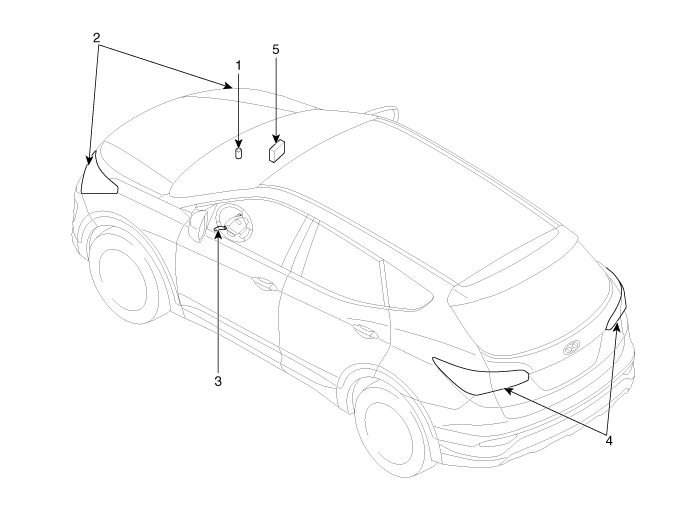

Component Location

1. Auto light sensor
2. Head lamps
3. Lighting switch (Auto)
4. Tail lamps
5. BCM (Body Control Module)


Specifications
Specifications Items Specifications Rated voltage 5V Load Max. 1mA (When head lamp lighting) Illuminations (LUX) 50 1.42 ± 0.31V 100 2.63 ± 0.58V 150 3.84 ± 0.84V ...

Schematic Diagrams
Circuit Diagram ...
