Hyundai Santa Fe: Cooling Fan. Components and Components Location - Cooling System - Engine Mechanical SystemHyundai Santa Fe: Cooling Fan. Components and Components Location

Hyundai Santa Fe DM 2013-2018 Service Manual / Engine Mechanical System / Cooling System / Cooling Fan. Components and Components Location

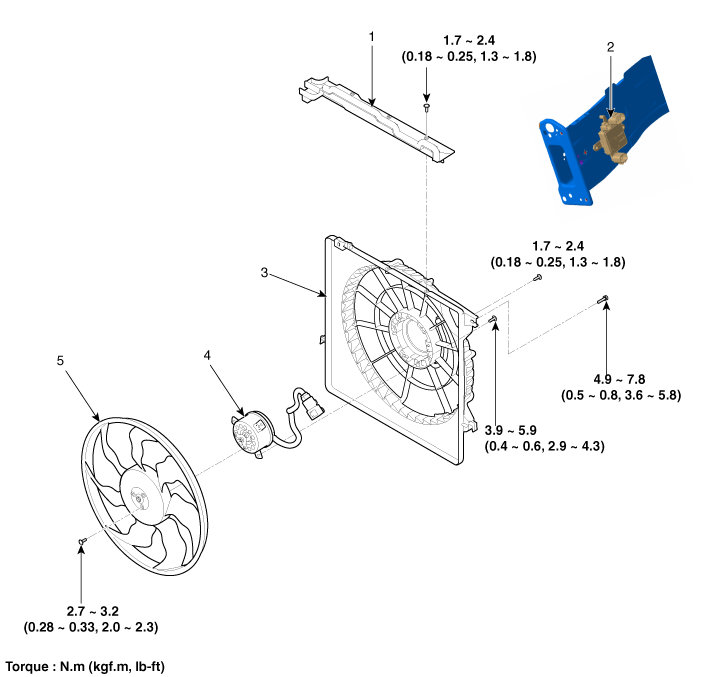

Components

1. Upper air guard
2. PWM module
3. Cooling fan shroud
 4. Fan motor
5. Cooling fan
