Hyundai Santa Fe: Cylinder Head Cover. Components and Components Location - Cylinder Head Assembly - Engine Mechanical SystemHyundai Santa Fe: Cylinder Head Cover. Components and Components Location

Hyundai Santa Fe DM 2013-2018 Service Manual / Engine Mechanical System / Cylinder Head Assembly / Cylinder Head Cover. Components and Components Location

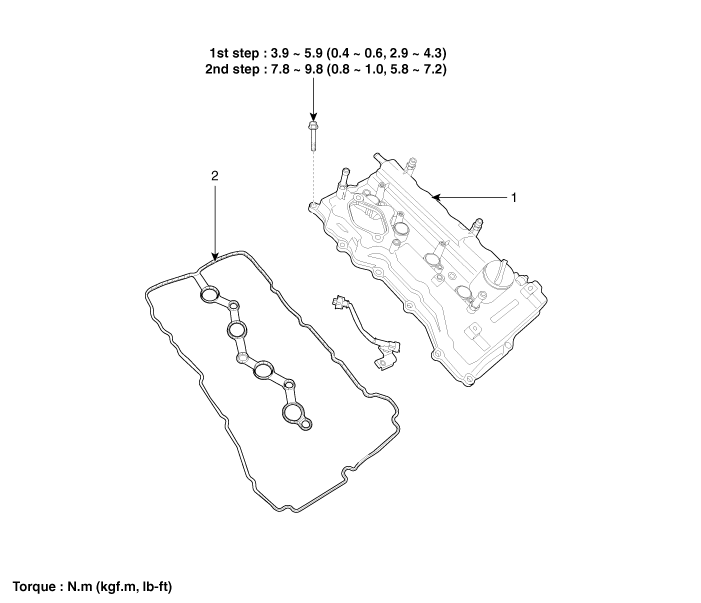

Components

1. Cylinder head cover
 2. Gasket


Repair procedures
Valve Clearance Inspection And Adjustment Inspect and adjust the valve clearance when the engine is cold (Engine coolant temperature : 20°C (68°F)) and cylinder head is installed on the cylinder block. ...

Cylinder Head Cover. Repair procedures
Removal 1. Disconnect the battery negative terminal. 2. Remove the engine cover. 3. Remove the air duct and air cleaner assembly. 4. Disconnect the exhaust OCV (Oil control valve) connector (A). 5. Disconnect ...
