Hyundai Santa Fe (DM): Engine compartment - Your vehicle at a glanceHyundai Santa Fe (DM): Engine compartment

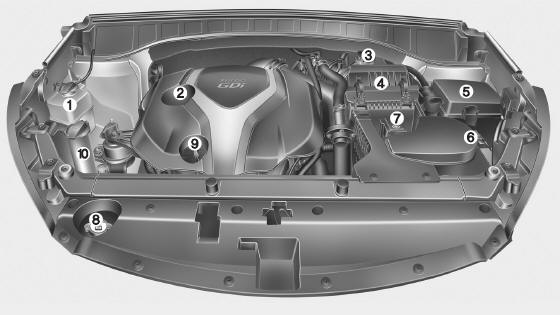

Gasoline 2.4L GDI

Gasoline 2.4L GDI

1. Engine coolant reservoir
2. Engine oil filler cap
3. Brake fluid reservoir
4. Air cleaner
5. Fuse box
6. Negative battery terminal
7. Positive battery terminal
8. Radiator cap
9. Engine oil dipstick
10. Windshield washer fluid reservoir

Gasoline 2.0L TURBO GDI

Gasoline 2.0L TURBO GDI

1. Engine coolant reservoir
2. Engine oil filler cap
3. Brake fluid reservoir
4. Air cleaner
5. Fuse box
6. Negative battery terminal
7. Positive battery terminal
8. Radiator cap
9. Engine oil dipstick
10. Windshield washer fluid reservoir
