Hyundai Santa Fe (DM): Front Seat Frame Assembly. Components and Components Location - Front Seat - Body (Interior and Exterior)Hyundai Santa Fe (DM): Front Seat Frame Assembly. Components and Components Location

Hyundai Santa Fe DM 2013-2018 Service Manual / Body (Interior and Exterior) / Front Seat / Front Seat Frame Assembly. Components and Components Location

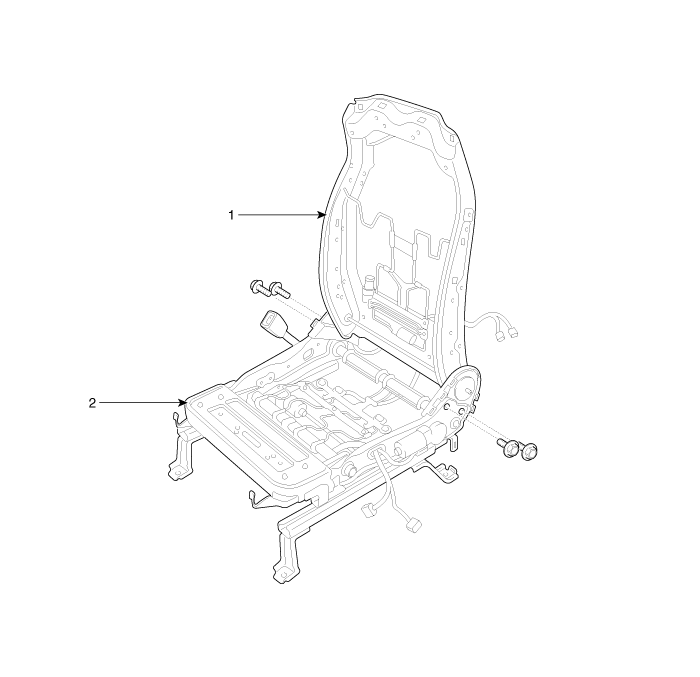

Component Location

1. Front seat back frame assembly
 2. Front seat cushion frame assembly
