Hyundai Santa Fe: Heated Description and Operation - Steering wheel - Steering SystemHyundai Santa Fe: Heated Description and Operation

Description

Heated pads to grip the steering grip makes the fever.
1.
Heated control unit
2.

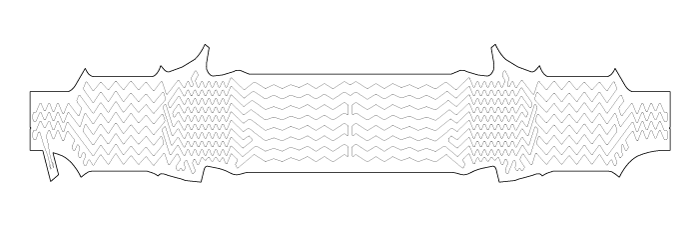

Heated pad

Specifications
Item
 Specification
Voltage
 13.5 V
Heated pad resistance
 1.4 ~ 1.8 Ω  ± 10%
NTC resistance
 10.0 kΩ  ± 10% (25°C)


Repair procedures
Removal 1. Disconnect the battery negative cable from the battery and then wait for at least 30 seconds. 2. Turn the steering wheel so that the front wheels can face straight ahead. 3. Remove the airbag ...

Heated Schematic Diagrams
System Circuit Diagram Terminal Function Housing Pin Function Wire color Pad A GND Back B HEATER Yellow C NTC+ Back / Yellow D NTC- Back Remote control A GND Back B BAT Red C LED Green D SWITCH White ...
