Hyundai Santa Fe: Heated Schematic Diagrams

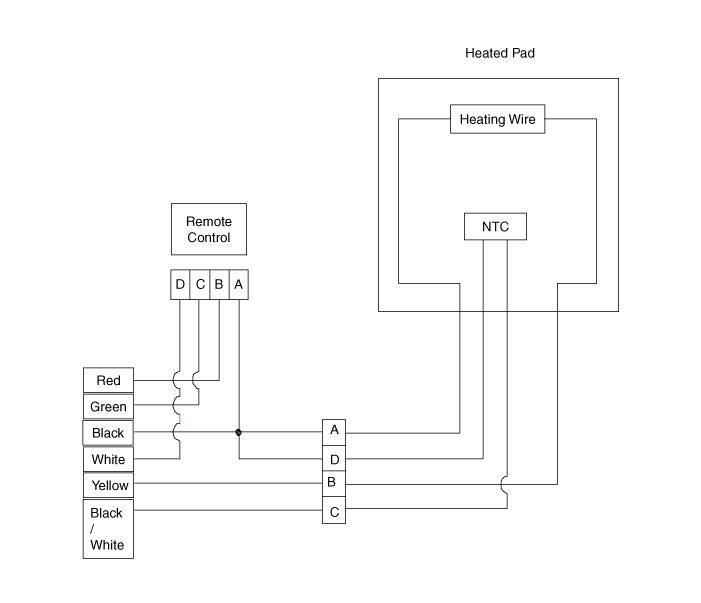

System Circuit Diagram

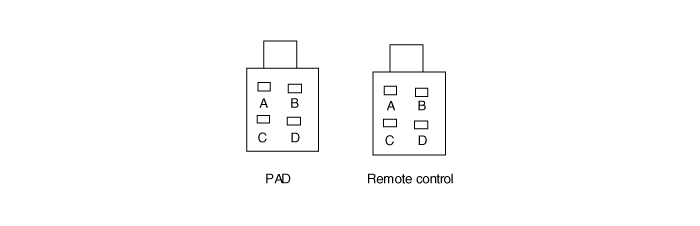

Terminal Function
|
Housing |
Pin |
Function |
Wire color |
|
Pad |
A |
GND |
Back |
|
B |
HEATER |
Yellow |
|
|
C |
NTC+ |
Back / Yellow |
|
|
D |
NTC- |
Back |
|
|
Remote control |
A |
GND |
Back |
|
B |
BAT |
Red |
|
|
C |
LED |
Green |
|
|
D |
SWITCH |
White |
Heated Description and Operation
Description Heated pads to grip the steering grip makes the fever. 1. Heated control unit 2. Heated pad Specifications Item Specification Voltage 13.5 V Heated pad resistance 1.4 ~ 1.8 Ω Â± ...
Heated Repair procedures
Inpection 1. Measure a resistance of NTC and Heated pad. A. NTC resistance(Black / Yellow, Black) - 10.0 kΩ Â± 10% (25°C) B. Heated pad resistance (Yellow, Black) - 1.6 ~ 2.0 Ω Â± 10% 2. Measure ...
