Hyundai Santa Fe (DM): Inhibitor Switch. Schematic Diagrams - Automatic Transaxle Control System - Automatic Transaxle SystemHyundai Santa Fe (DM): Inhibitor Switch. Schematic Diagrams

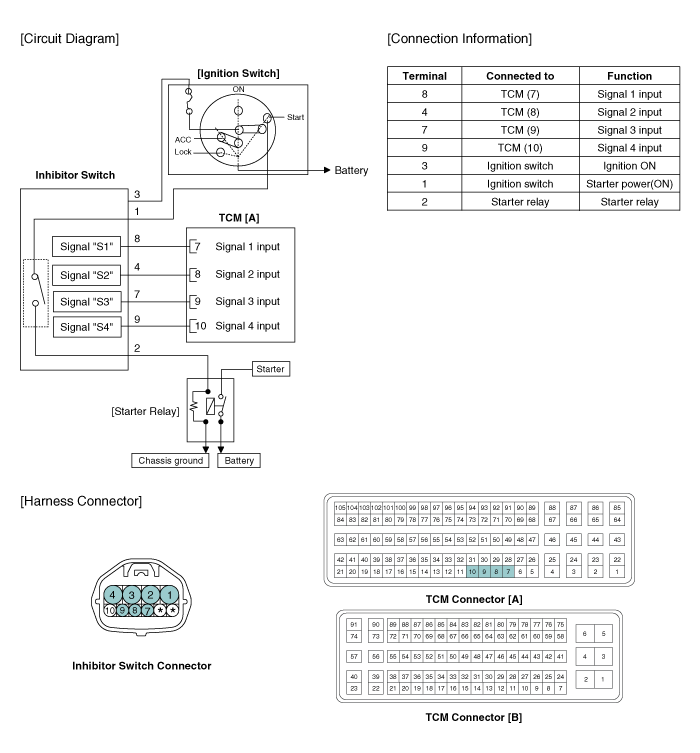

Circuit Diagram


Inhibitor Switch. Specifications
Specifications ▷ Type: Combination of output signals from 4 terminals ▷ Specifications Power supply (V) 12 Output type Pin to Pin ▷ Signal Code Table   P P-R R R-N N N-D D S1 12V ...

Inhibitor Switch. Repair procedures
Inspection • Thoroughly check connectors for looseness, poor connection, bending, corrosion, contamination, deterioration, or damage. Power Circuit Inspection 1. Disconnect the Inhibitor swtich connector. ...
