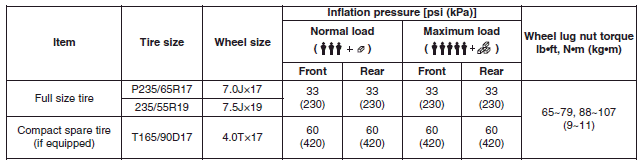

Hyundai Santa Fe: Tires and wheels - Specifications, Consumer information and Reporting safety defectsHyundai Santa Fe: Tires and wheels

CAUTION

CAUTION

When replacing tires, use the same size originally supplied with the vehicle. Using tires of a different size can damage the related parts or make it work irregularly.
