Hyundai Santa Fe: Instrument Cluster. Schematic
Diagrams - Indicators And Gauges - Body Electrical SystemHyundai Santa Fe: Instrument Cluster. Schematic Diagrams

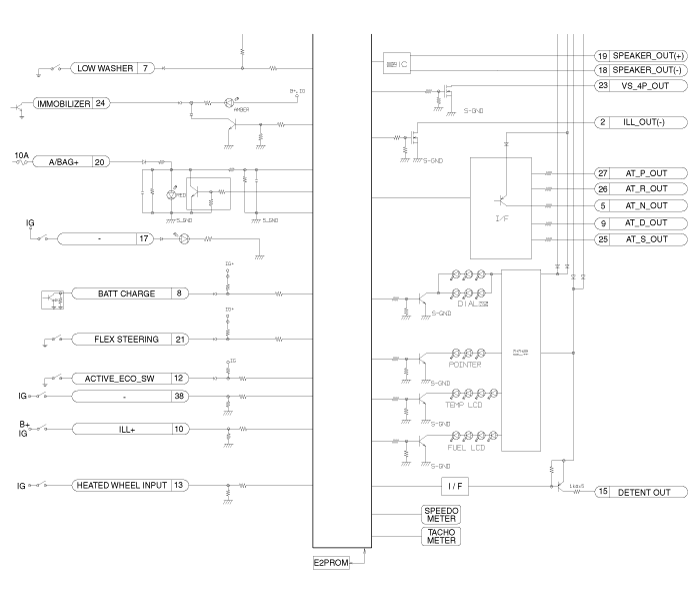

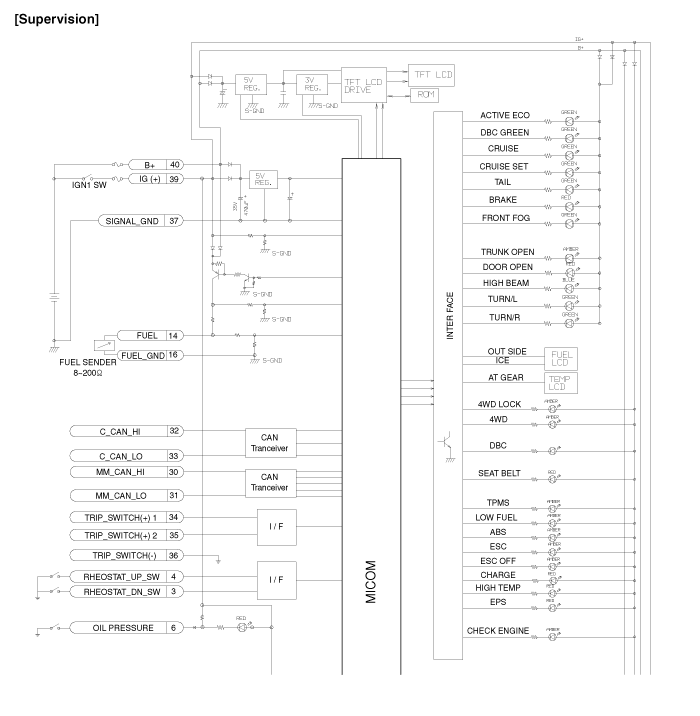

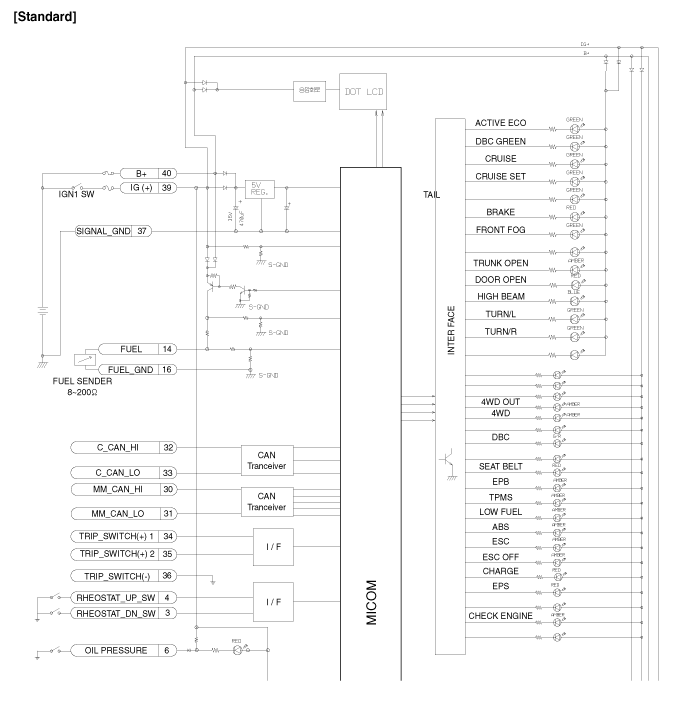

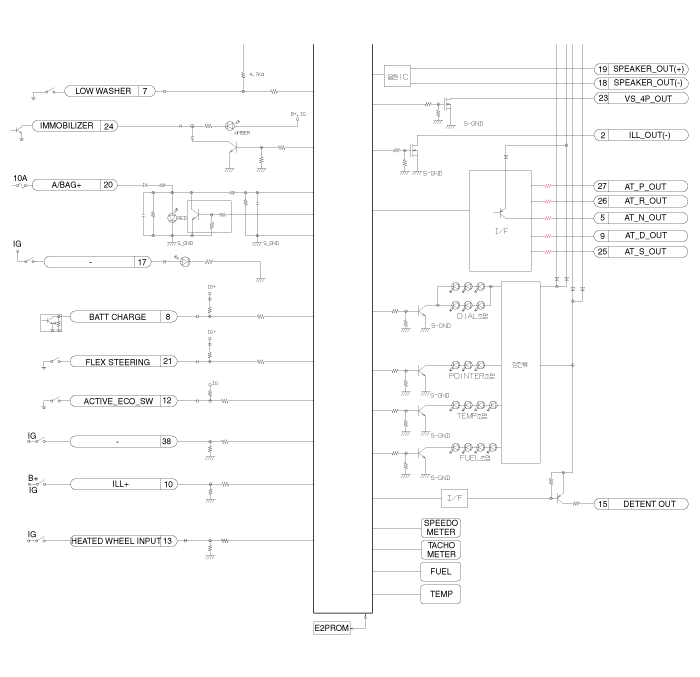

Circuit Diagram
