Hyundai Santa Fe (DM): Interior overview

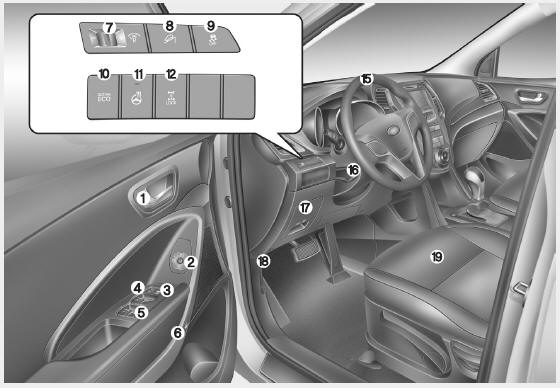

1. Inside door handle
2. Outside rearview mirror control
3. Power window lock button
4. Central door lock switch
5. Power window switch
6. Fuel-filler lid opener
7. Instrument panel illumination control knob
8. DBC button
9. ESC OFF button
10. Active ECO button
11. Heated steering wheel button
12. AWD LOCK button
15. Steering wheel
16. Tilt and telescopic steering control lever
17. Inner panel fuse
18. Hood release lever
19. Seat

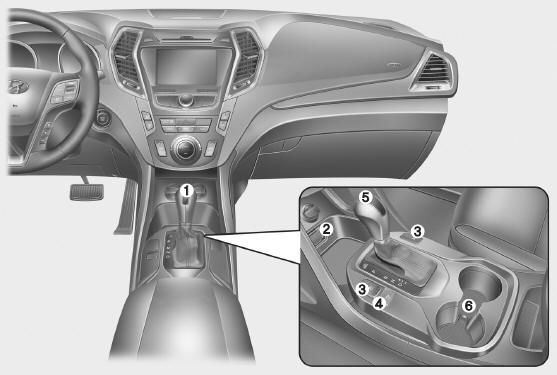

1. Power outlet
2. Aux, USB and iPod
3. Seat warmer/ Air ventilation seat button
4. Parking assist system button
5. Transaxle shift lever
6. Cup holder
Exterior overview
Front view 1. Panoramic sunroof 2. Front windshield wiper blades 3. Outside rearview mirror 4. Door locks 5. Headlight 6. Front fog light 7. Hood 8. Tires and wheels Rear view 1. Antenna 2. Defroster ...
Instrument panel overview
1. Lighting control lever 2. Audio remote control buttons 3. Bluetooth hands-free buttons 4. Cruise control button 5. Flex steer control button 6. LCD display control buttons 7. Horn 8. Driver’s front ...
