Hyundai Santa Fe: Exterior overview - Your vehicle at a glanceHyundai Santa Fe: Exterior overview

Front view

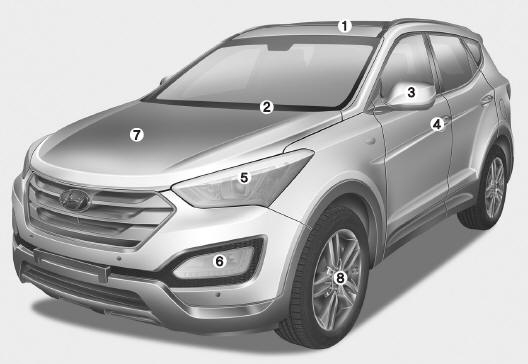

Front view

1. Panoramic sunroof
2. Front windshield wiper blades
3. Outside rearview mirror
4. Door locks
5. Headlight
6. Front fog light
7. Hood
8. Tires and wheels

Rear view

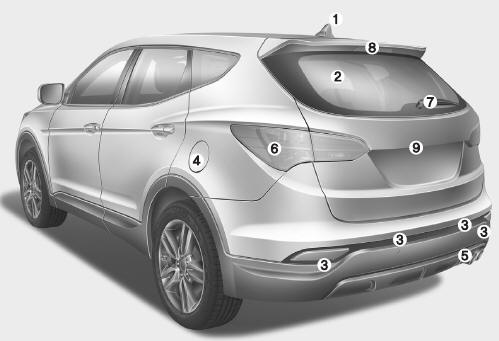

Rear view

1. Antenna
2. Defroster
3. Parking assist system
4. Fuel filler lid
5. Towing hook
6. Rear combination lamp
7. Rear window wiper blade
8. High mounted stop lamp
9. Rearview camera
