Hyundai Santa Fe: Master Cylinder. Components and Components Location - Brake System - Brake SystemHyundai Santa Fe: Master Cylinder. Components and Components Location

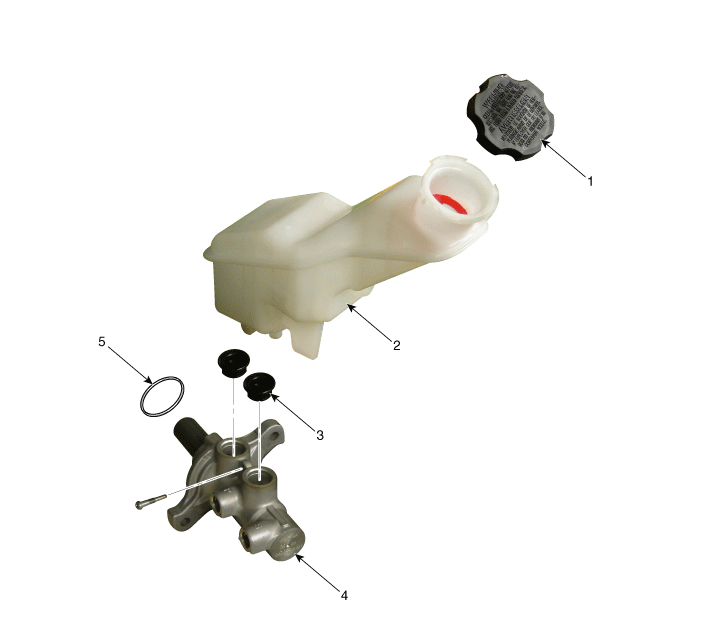

Components

1. Reservoir cap
2. Reservoir
3. Grommet
4. Master cylinder


Brake Booster. Repair procedures
Brake Booster Operating Test For simple checking of the brake booster operation, carry out the following tests. 1. Run the engine for one or two minutes, and then stop it. If the pedal depresses fully ...

Master Cylinder. Repair procedures
Removal 1. Turm ignition switch OFF and disconnect the negative (-) battery cable. 2. Remove the air cleaner assembly. 3. Disconnect the brake fluid level switch connector (B), and remove the reservoir ...
