Hyundai Santa Fe: Multimedia Jack. Schematic Diagrams - AVN System - Body Electrical SystemHyundai Santa Fe: Multimedia Jack. Schematic Diagrams

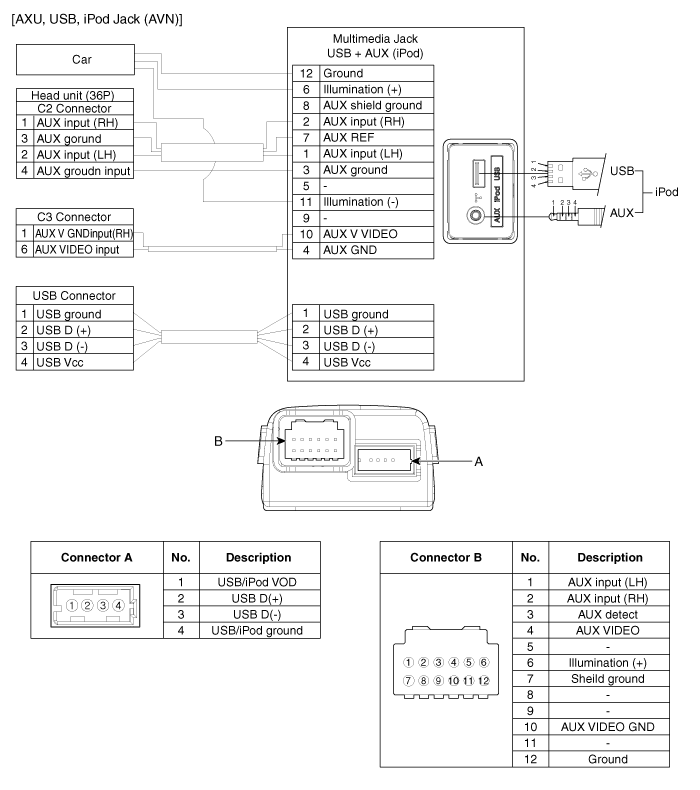

Circuit Diagram


AVN Head Unit. Repair procedures
Removal • Take care not to scratch the center fascia panel and related parts. • Eject all the disc before removing the AVN head unit to prevent damaging the CD player's load mechanism. 1. Disconnect ...

Multimedia Jack. Description and Operation
Description The multimedia jack on the console upper cover is for customers who like to listen to external portable music players like the MP3, iPod and etc., through the vehicle's sound system when ...
