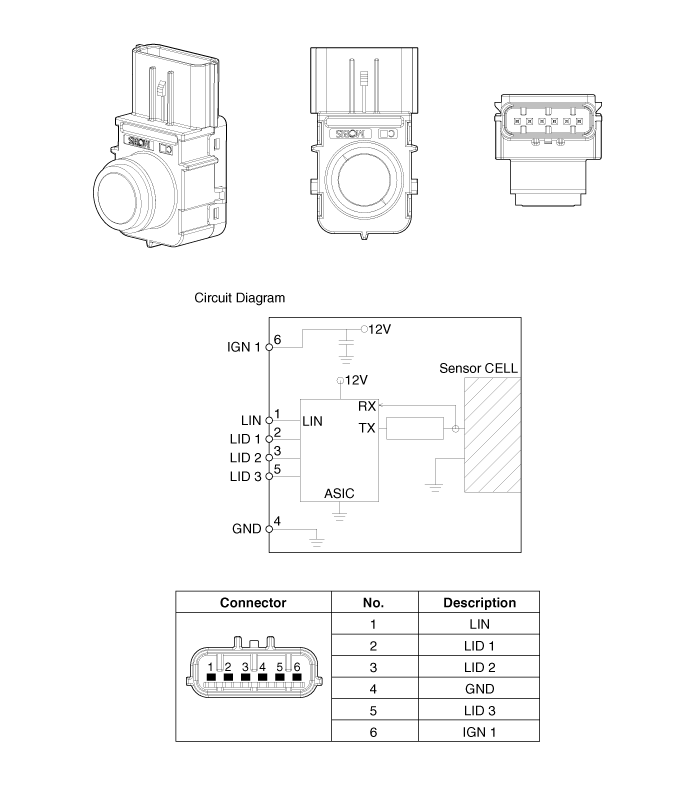

Component


Description and Operation
System Overview RPAS (Rear Parking Assist System) is an electronic driving aid that warns the driver to be cautious while parking or in low speed environments. The sensor uses ultrasonic waves to detect ...

Parking Assist Sensor. Repair procedures
Removal 1. Disconnect the negative (-) battery terminal. 2. Remove the rear bumper cover. 3. Disconnect the connector (B) from the parking assist sensor (A). 4. Pull out the sensor (A) by opening the sensor ...
