Hyundai Santa Fe: Piston and Connecting Rod. Components and Components Location - Cylinder Block - Engine Mechanical SystemHyundai Santa Fe: Piston and Connecting Rod. Components and Components Location

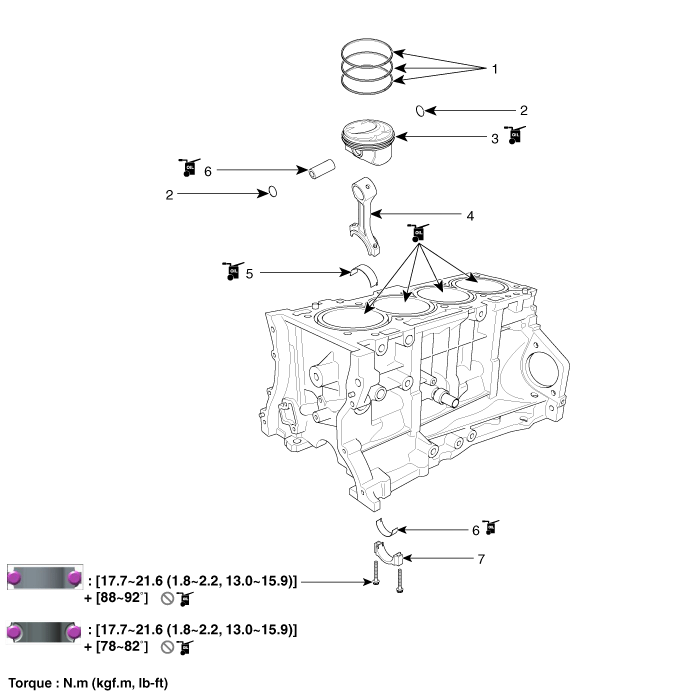

Components

1. Piston ring
2. Snap ring
3. Piston
4. Connecting rod
5. Connecting rod upper bearing
6. Connecting rod lower bearing
7. Connecting rod bearing cap


Repair procedures
Disassembly • Use fender covers to avoid damaging painted surfaces. • To avoid damage, unplug the wiring connectors carefully while holding the connector portion. • Mark all wiring and hoses to avoid ...

Piston and Connecting Rod. Repair procedures
Disassembly • Use fender covers to avoid damaging painted surfaces. • To avoid damage, unplug the wiring connectors carefully while holding the connector portion. • Mark all wiring and hoses to avoid ...
