Hyundai Santa Fe (DM): Components and Components Location

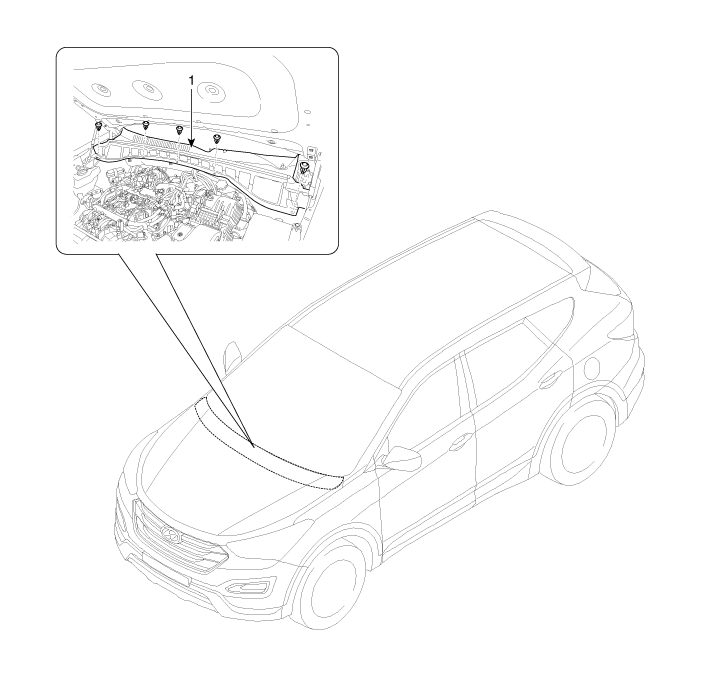

Component Location
|
1. Cowl top cover |
|
Cowl Top Cover
...
Repair procedures
Replacement 1. Remove the cap (A) and remove the nuts, then remove the wiper arm (B). Tightening torque : 22.6 ~ 26.5 N.m(2.3 ~ 2.7 kgf.m, 16.6 ~ 19.5 lb-ft) 2. Detach the clips, then remove the fender ...
