Hyundai Santa Fe (DM): Radiator. Components and Components Location - Cooling System - Engine Mechanical SystemHyundai Santa Fe (DM): Radiator. Components and Components Location

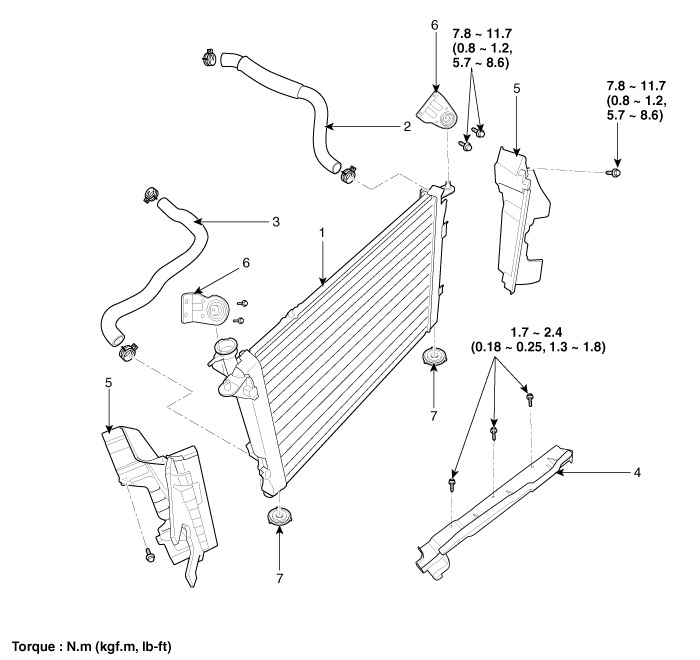

Components

1. Radiator
2. Radiator lower hose
3. Radiator upper hose
4. Radiator upper guard
 5. Radiator side air gusrd
6. Radiator upper mounting bracket
7. Radiator lower mounting insulator


Coolant. Repair procedures
Refilling And Bleeding Never remove the radiator cap when the engine is hot. Serious scalding could be caused by hot fluid under high pressure escaping from the radiator. When pouring engine coolant, be ...

Radiator. Repair procedures
Removal and Installation 1. Disconnect the battery terminals. 2. Remove the air cleaner assembly. 3. Remove the under cover.   4. Loosen the drain plug, and drain the coolant. Remove the radiator ...
