Hyundai Santa Fe: Rear Disc Brake. Components and Components Location - Brake System - Brake SystemHyundai Santa Fe: Rear Disc Brake. Components and Components Location

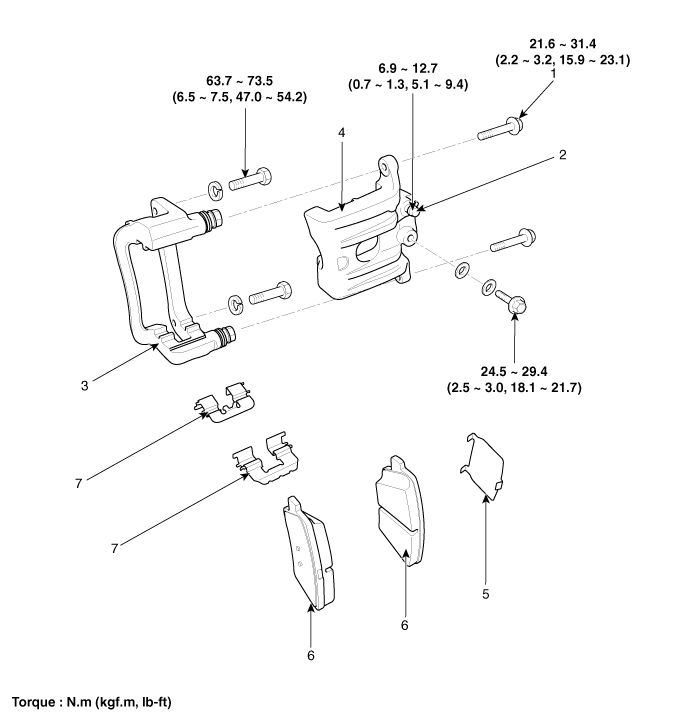

Components

1. Guide rod bolt
2. Bleed screw
3. Caliper carrier
4. Caliper body
5. Inner pad shim
6. Brake pad
7. Pad retainer


Front Disc Brake. Repair procedures
Removal 1. Remove the front wheel & tire. Tightening torque: 88.3 ~107.9 N.m (9.0 ~11.0 kgf.m, 65.1 ~79.6 lb-ft) 2. Loosen the hose eyebolt (C) and caliper mounting bolts (B), then remove the front ...

Rear Disc Brake. Repair procedures
Removal 1. Remove the rear wheel & tire. Tightening torque: 88.3 ~ 107.9 N.m (9.0 ~ 11.0 kgf.m, 65.1 ~ 79.6 lb-ft) 2. Loosen the hose eyebolt (B) and caliper mounting bolts (C), then remove the rear ...
