Hyundai Santa Fe: Seat Heater Switch. Schematic Diagrams - Seat Electrical - Body Electrical SystemHyundai Santa Fe: Seat Heater Switch. Schematic Diagrams

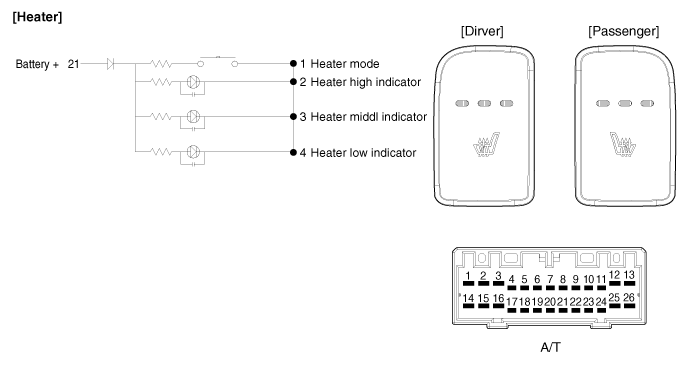

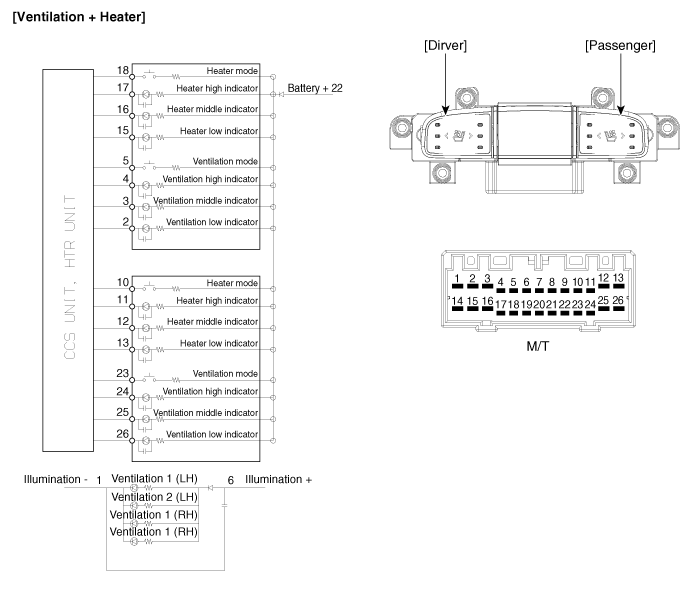

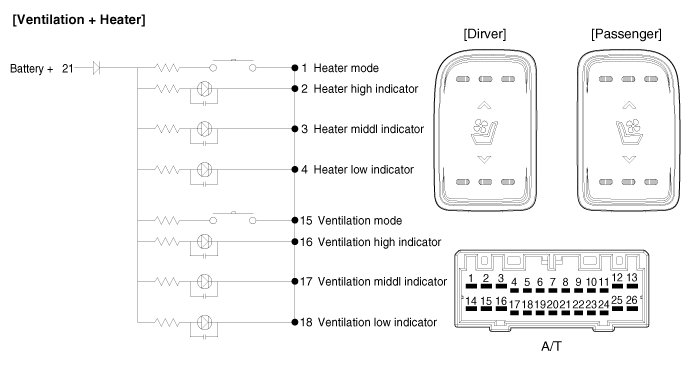

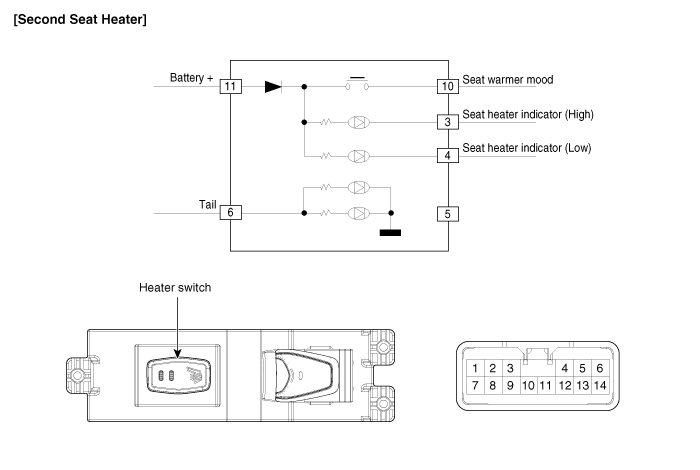

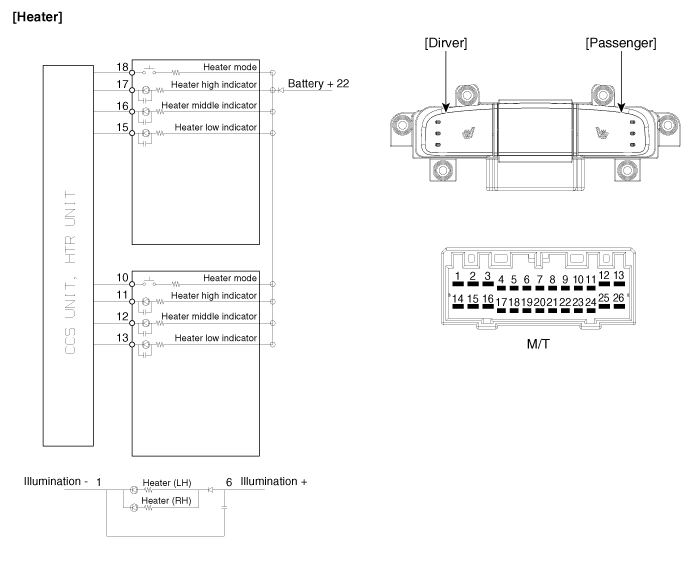

Circuit Diagram


Seat Heater (Air Ventilation). Repair procedures
Inspection Front Seat 1. Check for continuity and measure the resistance between terminals. No. Description No. Description 1 Heater cushion + 4 Heater back + 2 NTC + 5 - 3 Ground 6 NTC - Standard value ...

Seat Heater Switch. Repair procedures
Removal Driver/ Passenger 1. Disconnect the negative (-) batttery terminal. 2. Remove the floor console assembly. 3. Remove the heater switch after loosening the screws. [A/T] 4. Remove the front tray ...
