Hyundai Santa Fe DM 2013-2018 Service Manual / Engine Electrical System / Cruise Control System / Cruise Control Switch. Components and Components Location

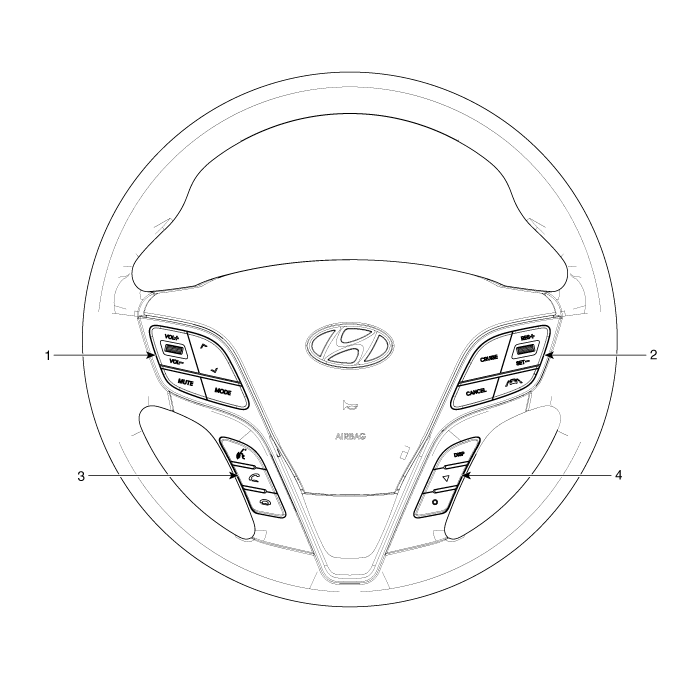

Components

1. Remote control switch (LH: Audio)
2. Remote control switch (RH: Cruise + Flex)
 3. Bluetooth handfree switch
4. Trip switch
