Hyundai Santa Fe: TPMS Receiver. Repair procedures - Tire Pressure Monitoring System - Suspension SystemHyundai Santa Fe: TPMS Receiver. Repair procedures

Adjustment

1.
Disconnect the negative (-) battery cable.
2.
Remove the glove box housing.
3.
Disconnect the connector.
4.
Remove the bracket (B) and receiver (C) as loosen the nut (A-1ea).

Tightening torque :
3.9 ~ 5.9N.m (0.4 ~ 0.6kgf.m, 2.9 ~ 4.3lb-ft)

5.
Install in the reverse order of removal.
6.
Re-connect battery and turn Ignition on.
7.
After replacing the receiver, learn by using self-diagnosis device(GDS).

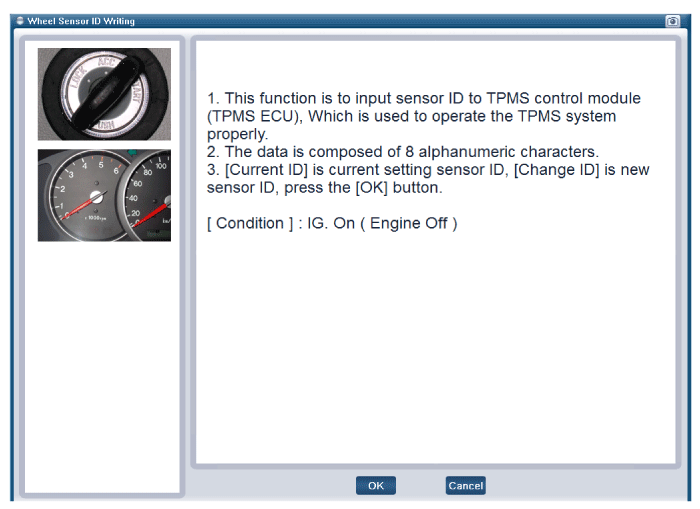

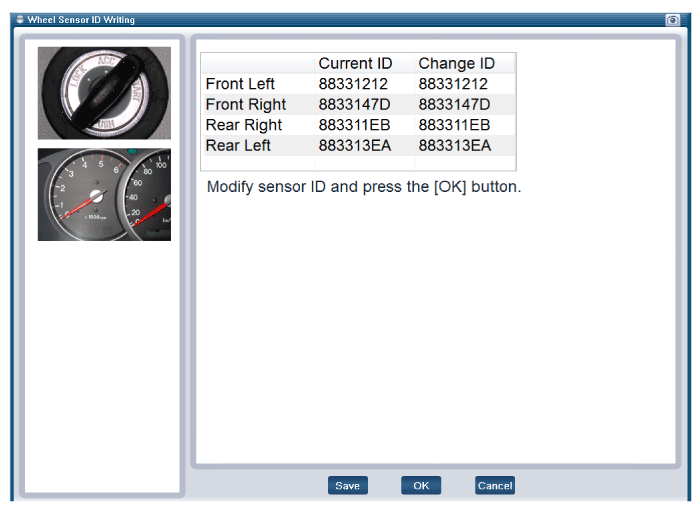

[Wheel Sensor ID Writing (Wireless) initialization]

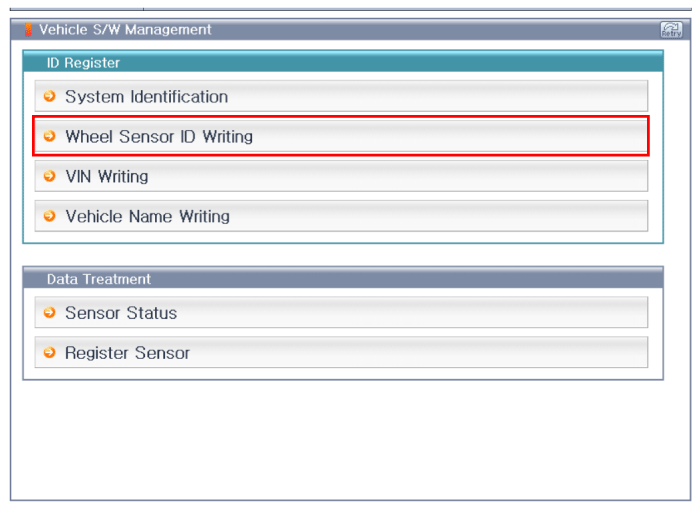

[Wheel Sensor ID Writing (Wireless) 1]

[Wheel Sensor ID Writing (Wireless) 2]

Diagnosis procedure by using diagnostic device

Diagnosis procedure by using diagnostic device

As manual for diagnosis methods by using diagnosis device, the main contents are as follows:
1.
Connect self-diagnosis connector(16pins) located in the lower of driver side crash pad to self-diagnosis device, and then turn the self-diagnosis device after key is ON.
2.
Select the "vehicle model" and "TPMS" on GDS vehicle selection screen, then select OK.

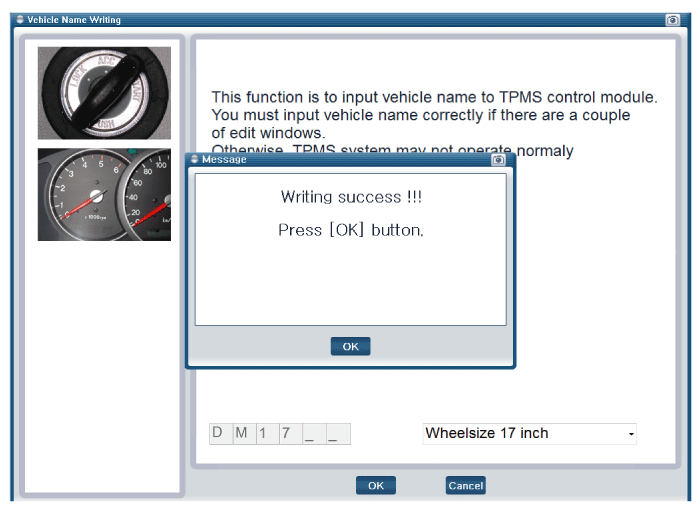

[Vehicle name input initialization]

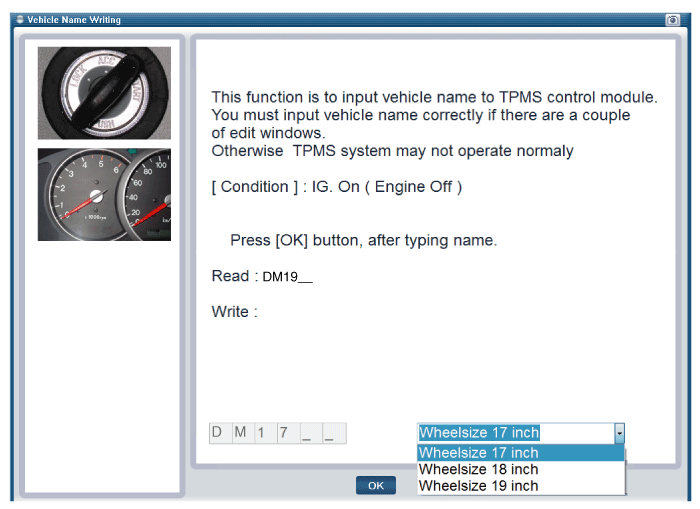

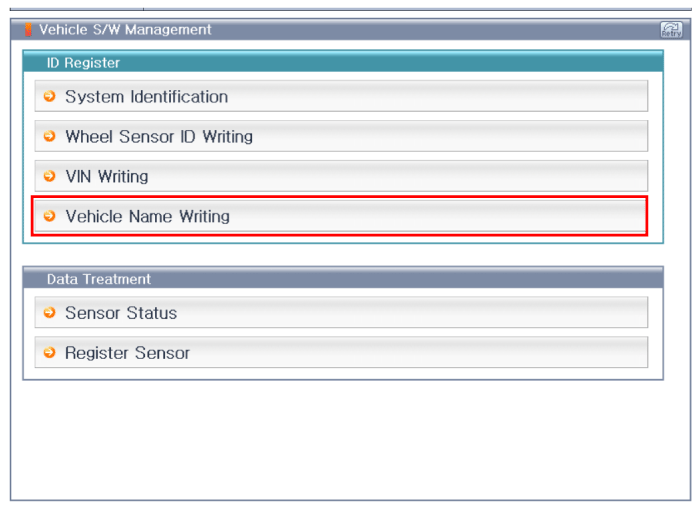

[Vehicle Name Writing 1]

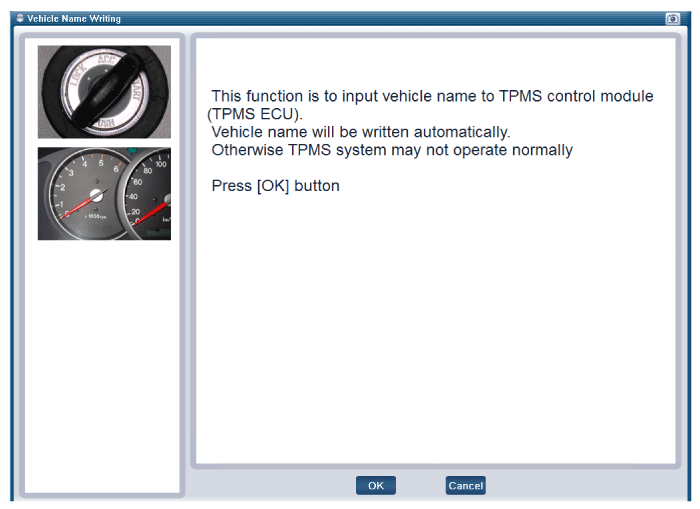

[Vehicle Name Writing 2]

[Vehicle Name Writing 3]

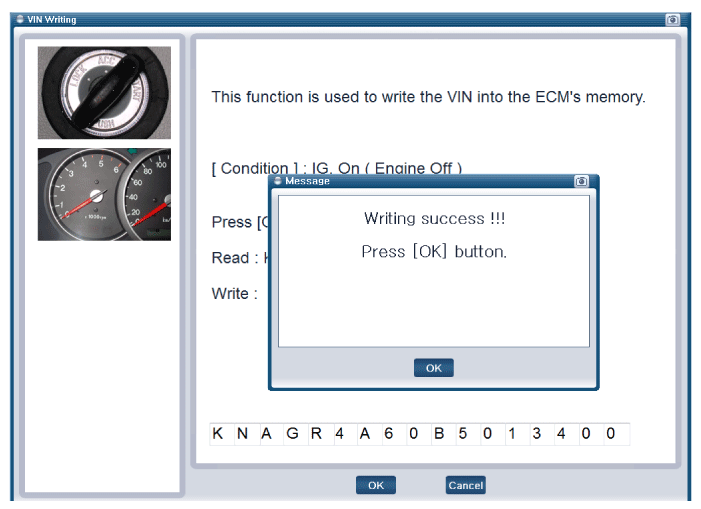

[VIN input initialization]

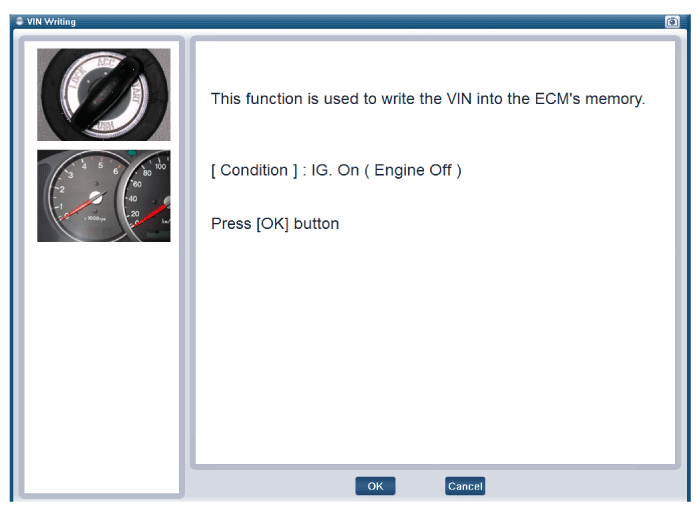

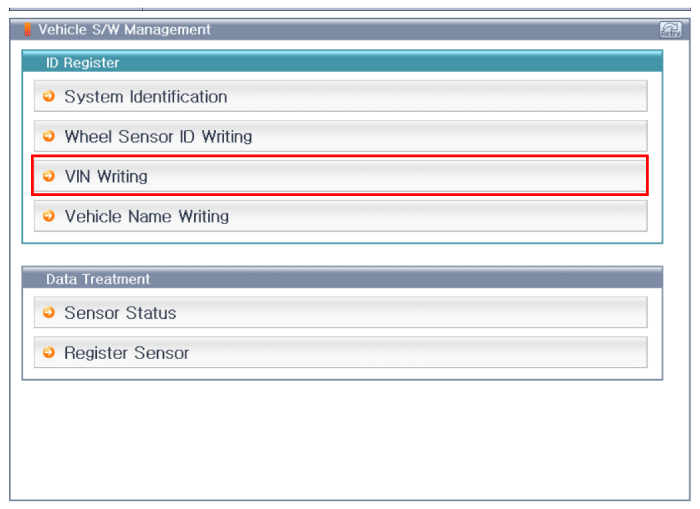

[VIN Writing 1]

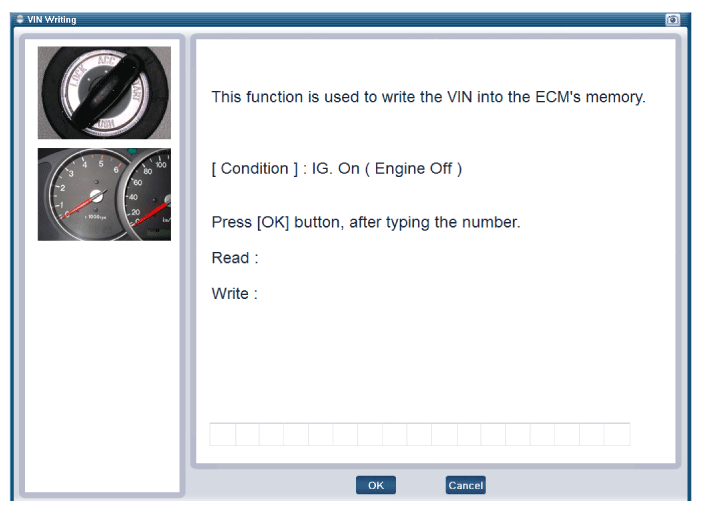

[VIN Writing 2]

[VIN Writing 3]


TPMS Receiver. Schematic Diagrams
System Circuit Diagram No Function 1 MCU part 2 CAN interface part 3 5V supply part 4 Battery detection circuit part 5 RF receiver part 6 Antenna part ...
