Hyundai Santa Fe: Troubleshooting - Audio - Body Electrical SystemHyundai Santa Fe: Troubleshooting

Troubleshooting

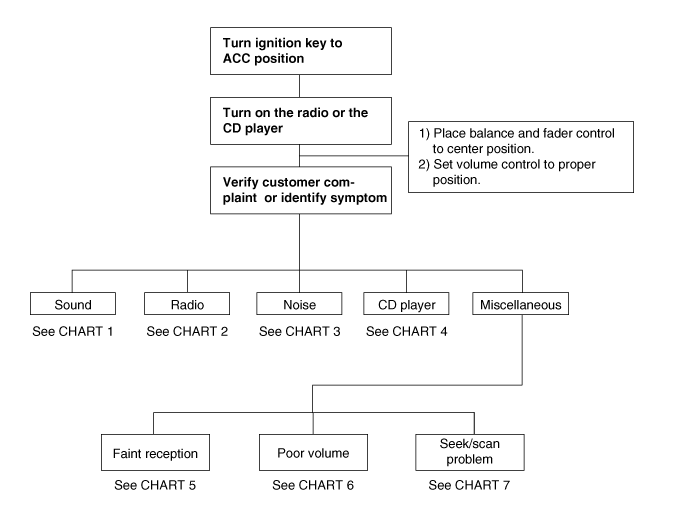

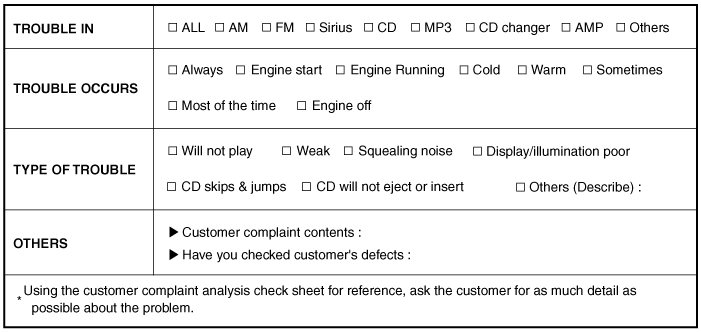

Customer Complaint Analysis Check Sheet

There are six areas where a problem can occur: wiring harness, the radio, the CD player, and speaker. Troubleshooting enables you to confine the problem to a particular area.

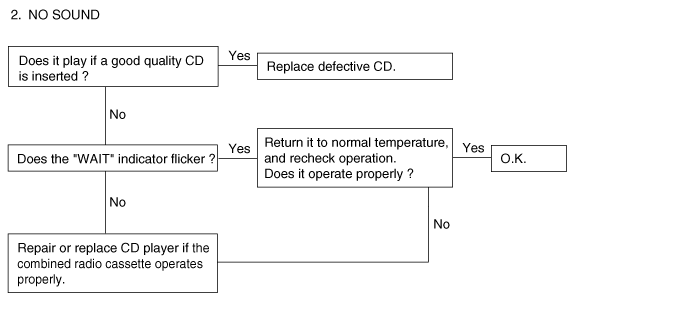

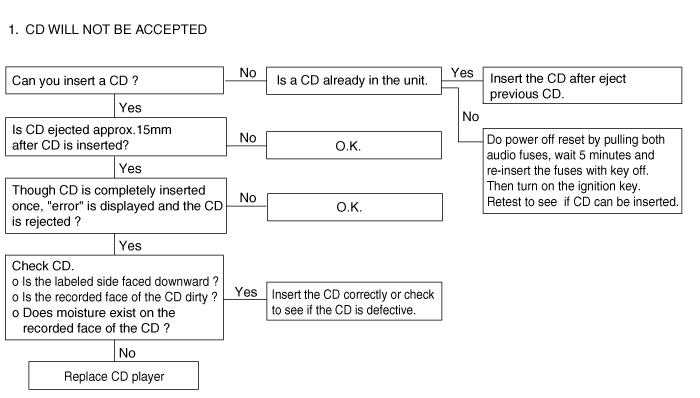

Chart 1

Chart 1

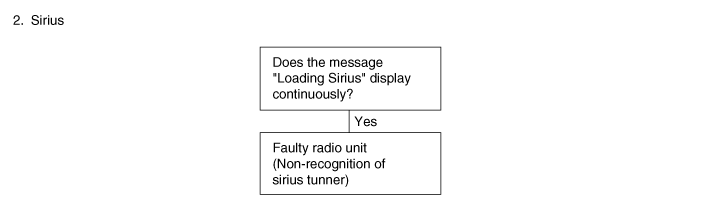

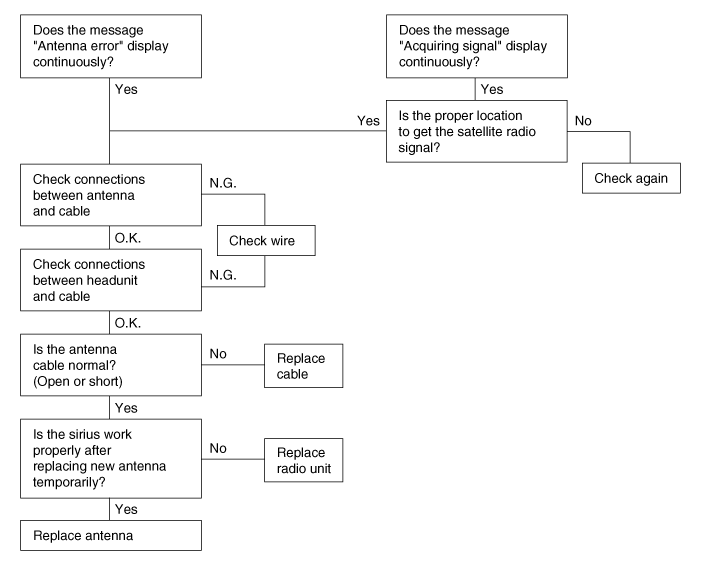

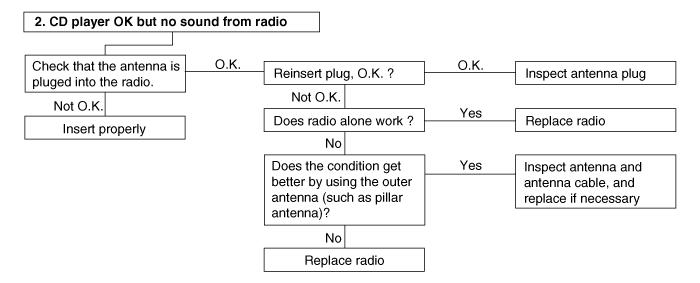

Chart 2

Chart 2

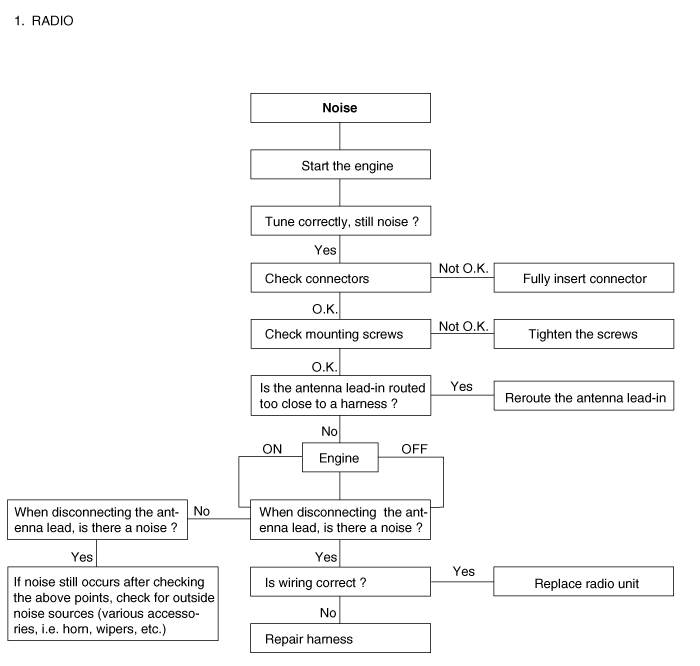

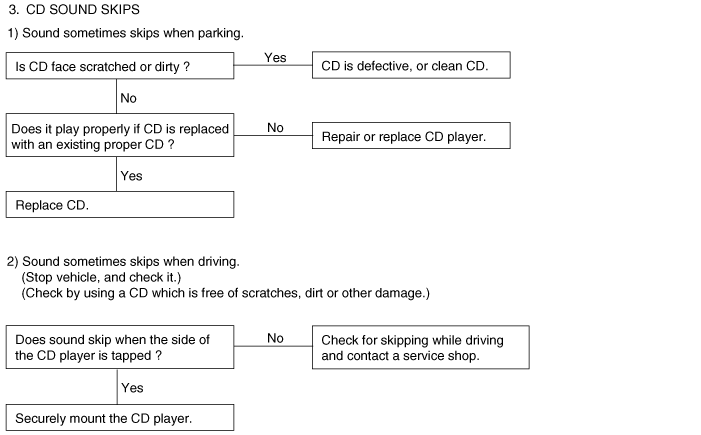

Chart 3

Chart 3

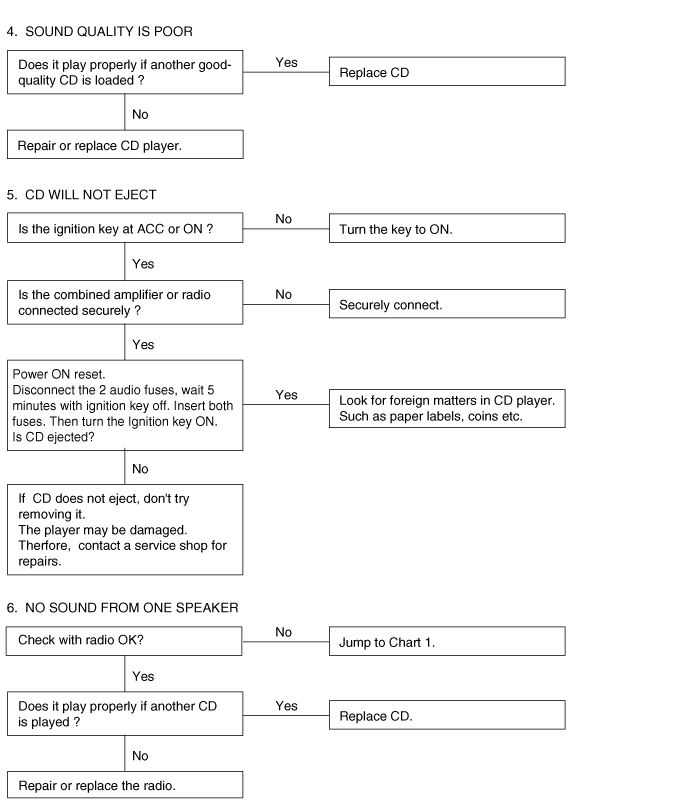

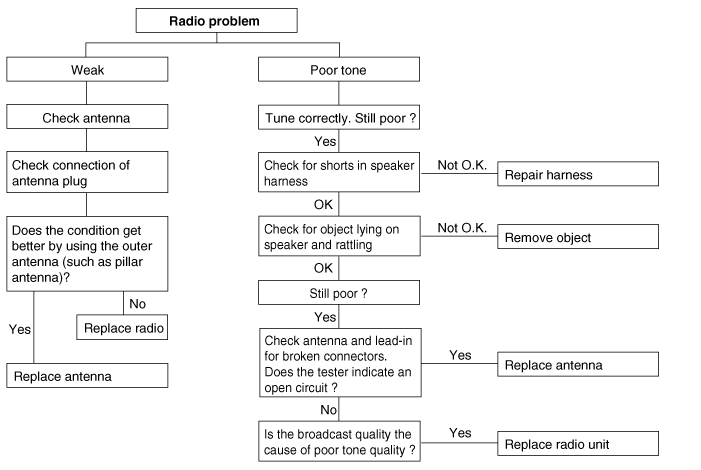

Chart 4

Chart 4

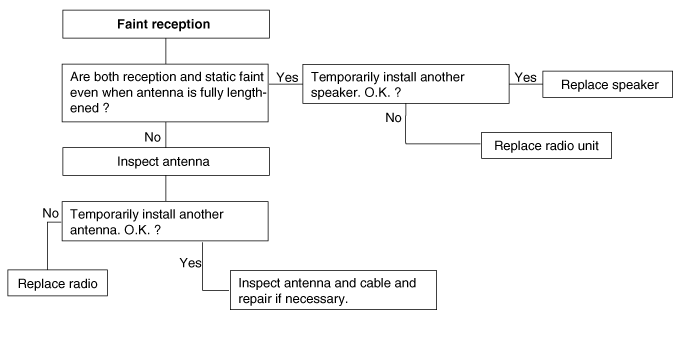

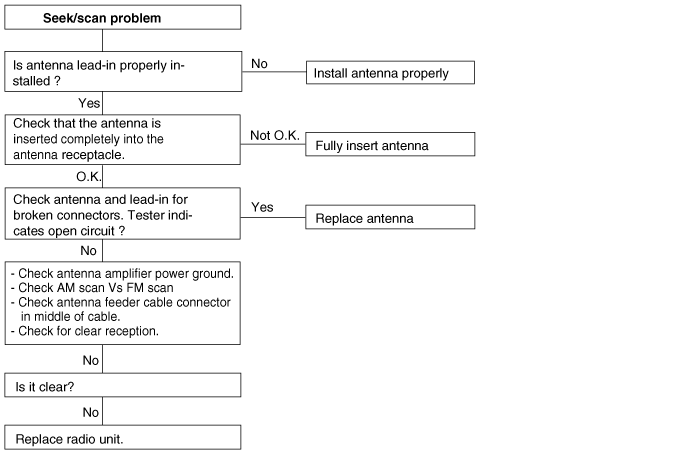

Chart 5

Chart 5

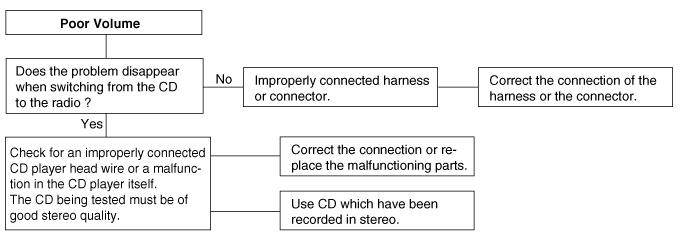

Chart 6

Chart 6

Chart 7

Chart 7
