Hyundai Santa Fe: Water pump. Components and Components Location - Cooling System - Engine Mechanical SystemHyundai Santa Fe: Water pump. Components and Components Location

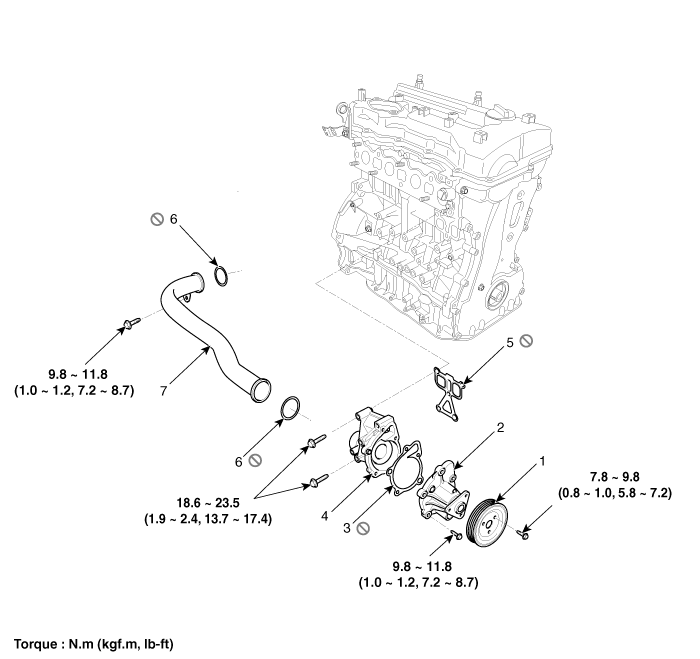

Components

1. Water pump pulley
2. Water pump
3. Water pump gasket
4. Water pump housing
5. Water pump housing gasket
6. O-ring
7. Water inlet pipe
