Hyundai Santa Fe (DM): Variable Intake Solenoid (VIS) Valve. Schematic Diagrams - Engine Control System - Engine Control/Fuel SystemHyundai Santa Fe (DM): Variable Intake Solenoid (VIS) Valve. Schematic Diagrams

Hyundai Santa Fe DM 2013-2018 Service Manual / Engine Control/Fuel System / Engine Control System / Variable Intake Solenoid (VIS) Valve. Schematic Diagrams

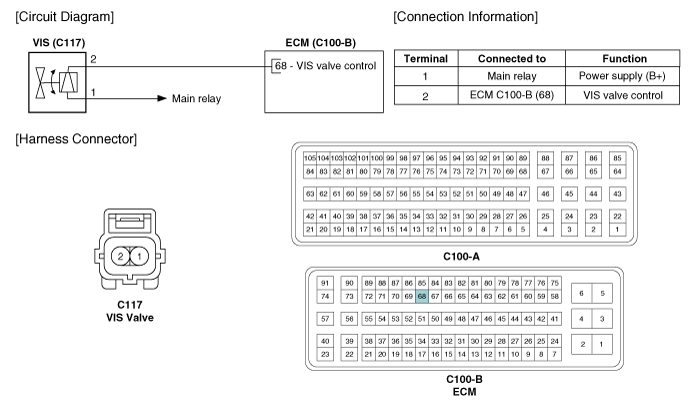

Circuit Diagram


Variable Intake Solenoid (VIS) Valve. Specifications
Specification Item Specification Coil resistance (Ω) 30.0 ~ 35.0 [20°C(68°F)] ...

Variable Intake Solenoid (VIS) Valve. Repair procedures
Inspection 1. Turn the ignition switch OFF. 2. Disconnect the VIS valve connector. 3. Measure resistance between VIS valve terminals 1 and 2. Specification: Refer to "Specification" Removal 1. ...
