Hyundai Santa Fe DM 2013-2018 Service Manual / Engine Control/Fuel System / Engine Control System / Accelerator Position Sensor (APS). Schematic Diagrams

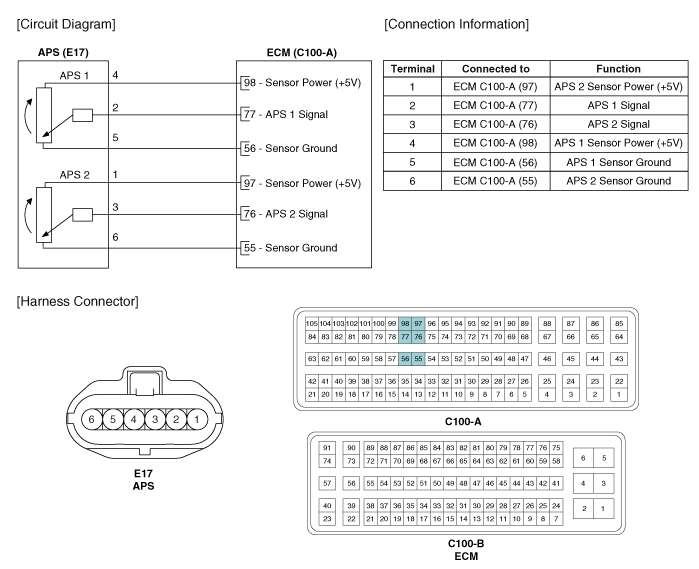

Circuit Diagram


Accelerator Position Sensor (APS). Specifications
Specification Accelerator Position Output Voltage (V) APS1 APS2 C.T 0.7 ~ 0.8 0.275 ~ 0.475 W.O.T 3.8 ~ 4.4 1.75 ~ 2.35 ...

Accelerator Position Sensor (APS). Repair procedures
Inspection 1. Connect the GDS on the Data Link Connector (DLC). 2. Turn the ignition switch ON. 3. Measure the output voltage of the APS 1 and 2 at C.T and W.O.T. Specification: Refer to “Specification” ...
