Hyundai Santa Fe (DM): Camshaft Position Sensor (CMPS). Schematic Diagrams - Engine Control System - Engine Control/Fuel SystemHyundai Santa Fe (DM): Camshaft Position Sensor (CMPS). Schematic Diagrams

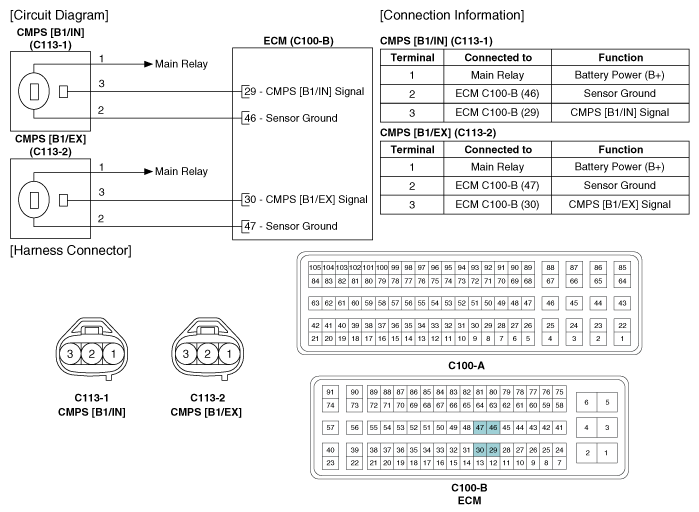

Circuit Diagram


Camshaft Position Sensor (CMPS). Troubleshooting
Wave Form ...

Camshaft Position Sensor (CMPS). Repair procedures
Inspection 1. Check the signal waveform of the CMPS and CKPS using the GDS. Specification: Refer to “Wave Form” Removal • DON’T remove the camshaft position sensor while the engine is running or ...
