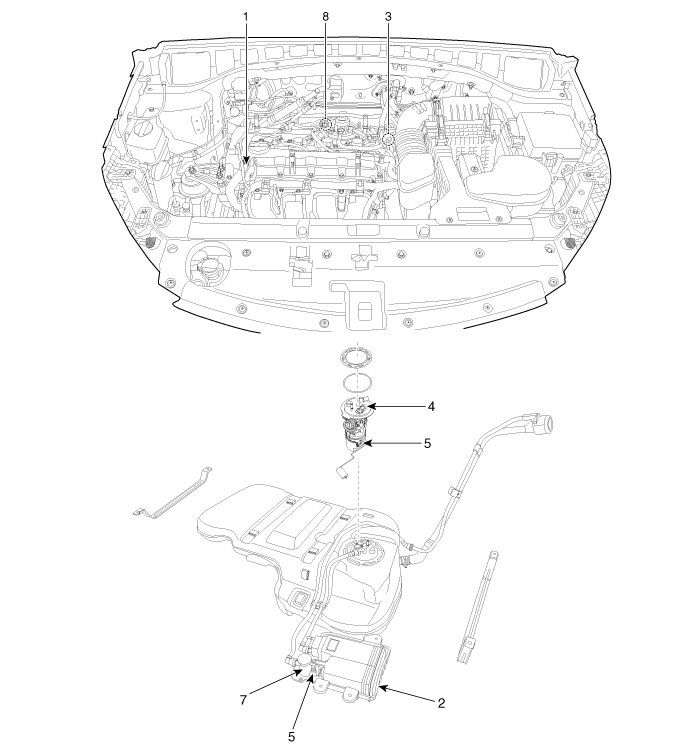

Components Location

1. PCV Valve
2. Canister
3. Purge Control Solenoid Valve (PCSV)
4. Fuel Tank Pressure Sensor (FTPS)
5. Canister Close Valve (CCV)
6. Fuel Level Sender (FLS)
7. Fuel Tank Air Filter
8. Catalytic Converter (WCC+UCC)

1. PCV Valve
2. Canister

3. Purge Control Solenoid Valve (PCSV)
4. Fuel Tank Pressure Sensor (FTPS)
6. Fuel Level Sender (FLS)

5. Canister Close Valve (CCV)
7. Fuel Tank Air Filter
8. Catalytic Converter (WCC)

8. Catalytic Converter (UCC)




Schematic Diagrams
Schematic Diagram ...
