Components

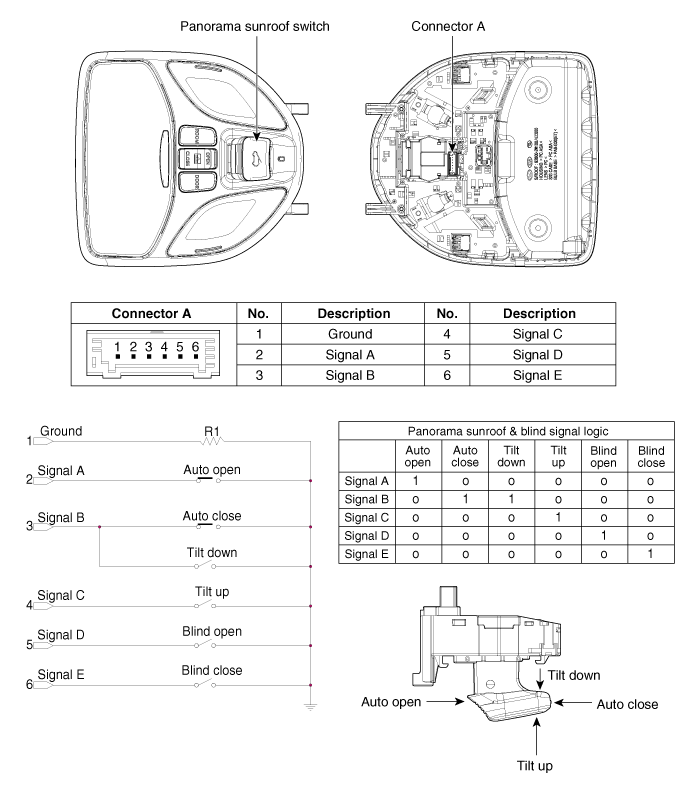

Schematic Diagrams
Circuit Diagram Connector Pin Information No. Wire harness connector Panorama motor Blind motor 1 Ground 1 Ground 1 Ground 2 2 Glass status signal / Tool fot glass Glass status signal/ Tool (Parameter) ...

Panorama Sunroof Switch. Repair procedures
Inspection 1. Disconnect the negative (-) battery terminal. 2. Open the sunglass case cover from the overhead console then remove the 2 screws holding the overhead console. Disconnect the switch connector ...
