Hyundai Santa Fe: Components and Components Location - Clutch & Brake - Automatic Transaxle SystemHyundai Santa Fe: Components and Components Location

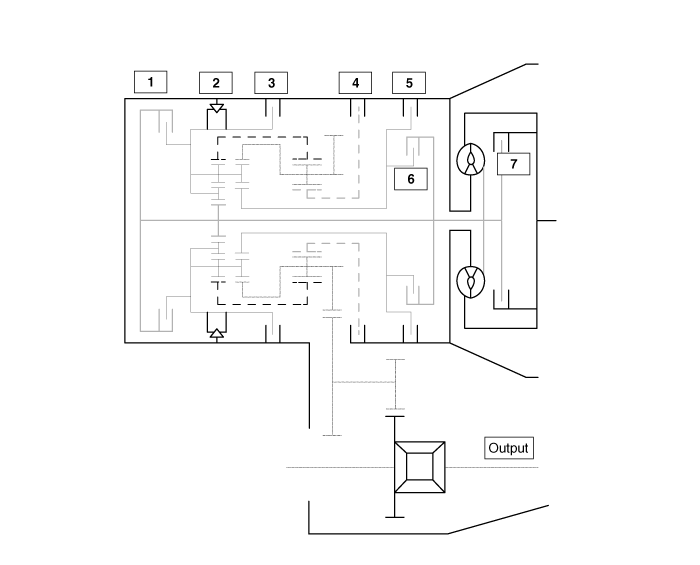

Component Location

1. Overdrive Clutch (OD/C)
2. One way Clutch (OWC)
3. Low & Reverse Brake (LR/B)
4. Underdrive Brake (UD/B)
5. 26 Brake(26/B)
6. 35R Clutch (35R/C)
7. Damper Clutch (D/C)


Description and Operation
Description The 6-speed automatic transaxle consists of an overdrive clutch (OD/C), a one-way clutch (OWC), a lower and reverse brake (LR/B), an underdrive brake (UD/B), a 26 brake (26/B), and a 35R clutch ...

Flow Diagram
Power Flow Chart P,N UD/B LR/B 26/B 35R/C OD/C OWC ● ▣ Direction of Rotation ▶Lower & Reverse Brake (LR/B) Activation → Overdrive (O/D) Hub Lock → Mid & Rear P/C Lock ...
