Hyundai Santa Fe (DM): Components and Components Location - Rear Suspension System - Suspension SystemHyundai Santa Fe (DM): Components and Components Location

Components

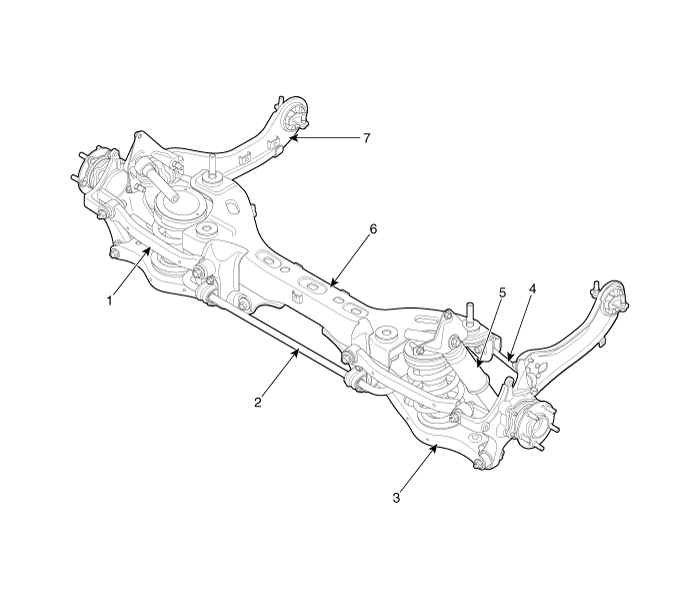

2WD

1. Rear upper arm
2. Rear stabilizer bar
3. Rear lower arm
4. Rear assist arm
5. Rear shock absorber
6. Rear cross member
7. Trailing arm

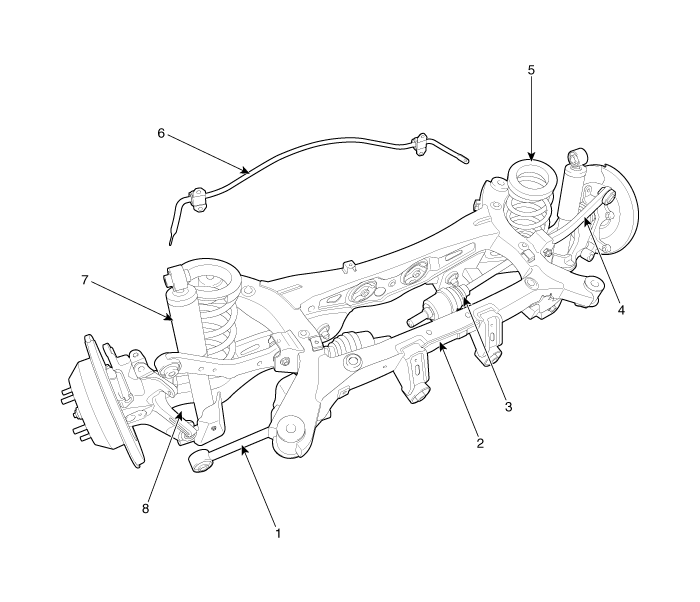

4WD
участие в гринкарта

1. Rear assist arm
2. Rear cross member
3. Rear drive shaft
4. Rear upper arm
5. Rear coil spring
6. Rear stabilizer bar
7. Rear shock absorber
8. Rear lower arm
