Hyundai Santa Fe: Front Door Outside Handle. Components and Components Location - Front Door - Body (Interior and Exterior)Hyundai Santa Fe: Front Door Outside Handle. Components and Components Location

Hyundai Santa Fe DM 2013-2018 Service Manual / Body (Interior and Exterior) / Front Door / Front Door Outside Handle. Components and Components Location

Component Location

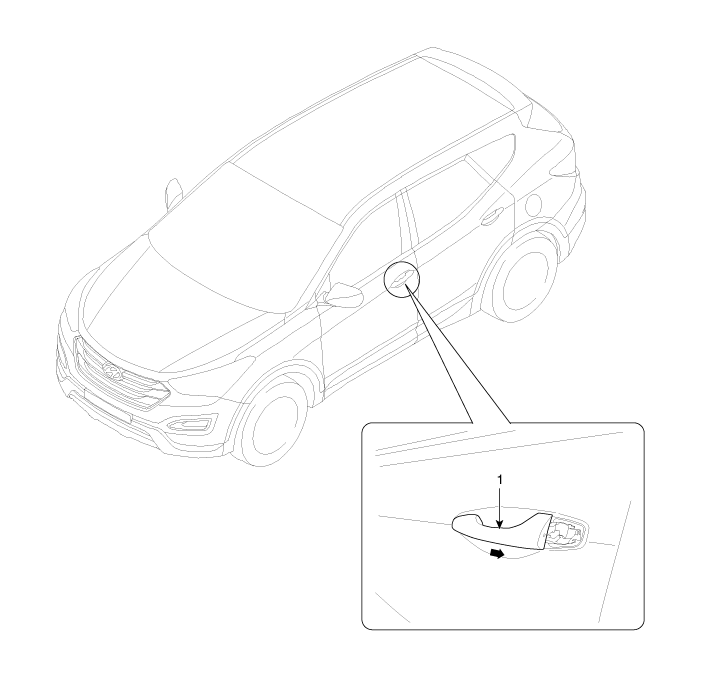

1. Front door outside handle


Front Door Module. Repair procedures
Replacement 1. Remove the front door window glass. 2. Remove the front door outside handle. 3. Disconnect the front door main connector (A). 4. Loosen the front door outside handle base mounting bolt (A). ...

Front Door Outside Handle. Repair procedures
Replacement 1. Remove the hole plug (B). 2. After loosening the mounting bolt, then remove the front door outside handle cover (A). Tightening torque : 7.8 ~ 11.8 N.m (0.8 ~ 1.2 kgf.m, 5.8 ~ 8.7 lb-ft) ...
