Hyundai Santa Fe: Components and Components Location

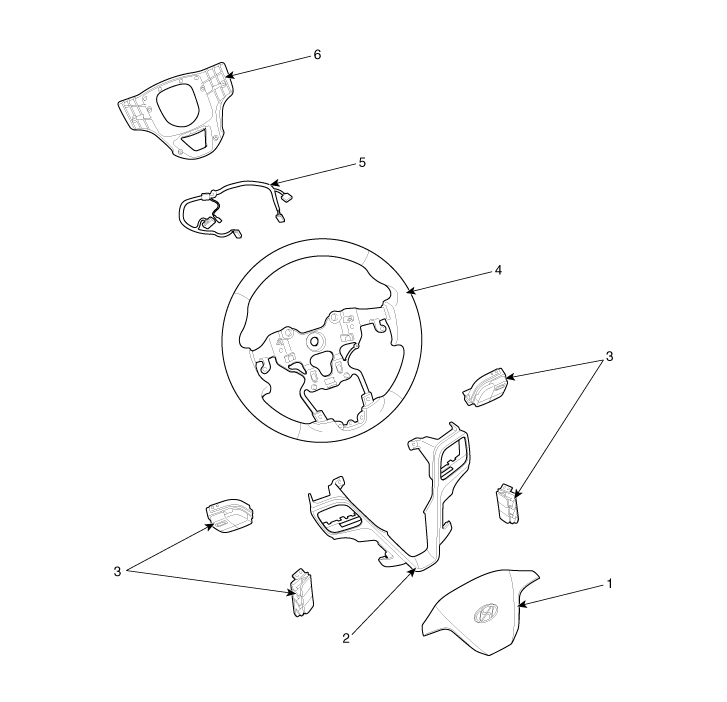

Components
|
1. Airbag module 2. Bezel 3. Remote control assembly |
4. Steering wheel 5. Wiring 6. Lower cover |
Steering wheel
...
Repair procedures
Removal 1. Disconnect the battery negative cable from the battery and then wait for at least 30 seconds. 2. Turn the steering wheel so that the front wheels can face straight ahead. 3. Remove the airbag ...
