Hyundai Santa Fe (DM): Components and Components Location - Auto Head Lamp Leveling Device - Body Electrical SystemHyundai Santa Fe (DM): Components and Components Location

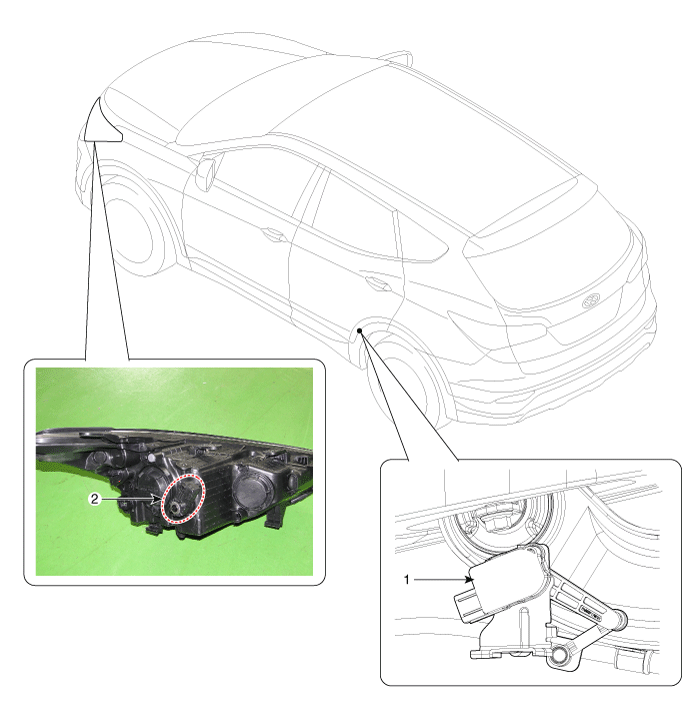

Component Location

1. Head lamp leveling unit and sensor
 2. Head lamp leveling actuator
