Hyundai Santa Fe (DM): Components and Components Location - General Information - RestraintHyundai Santa Fe (DM): Components and Components Location

Components

1. Driver Airbag (DAB)
2. Steering Wheel
3. Clock Spring
4. Passenger Airbag (PAB)
5. Side Airbag (SAB)
6. Curtain Airbag (CAB)
7. Knee Airbag (KAB)
8. Seat Belt Pretensioner (BPT)
9. Front Impact Sensor (FIS)
10. Rear Side Impact Sensor (RSIS)
11. Supplemental Restraint System Control Module(SRSCM)
12. Airbag Warning Lamp
13. Seat Belt Buckle Switch (BS)
14. Telltale Lamp
15. Emergency Fastening Device (EFD)
16. Passive Occupant Detection System (PODS-F)
17. Pressure Side Impact Sensor (P-SIS)


Components Location

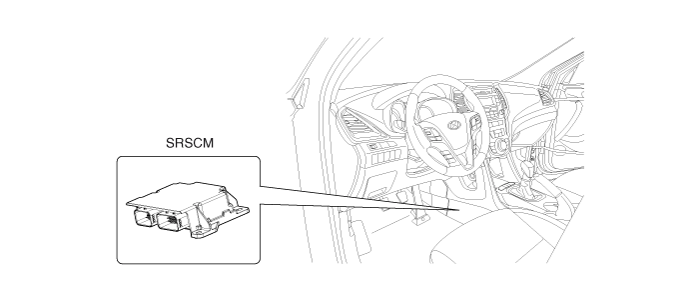

Supplemental Restraint System Control Module (SRSCM)

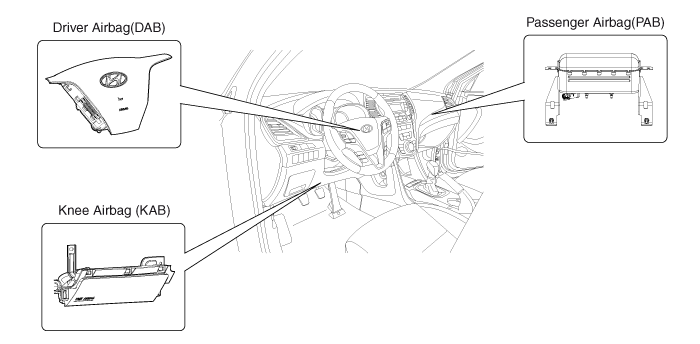

Driver Airbag (DAB) / Passenger Airbag (PAB) / Knee Airbag (KAB)

Side Airbag (SAB)

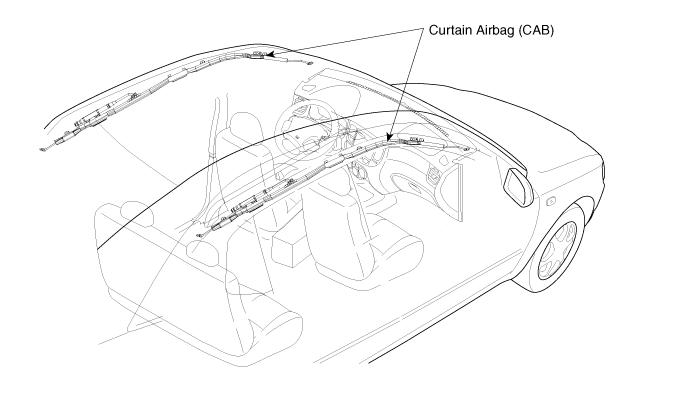

Curtain Airbag (CAB)

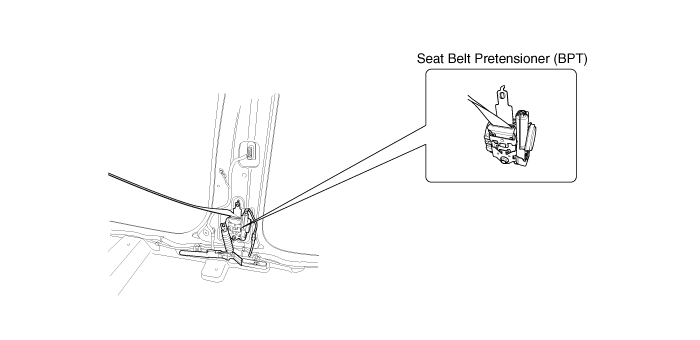

Seat Belt Pretensioner (BPT)

Emergency Fastening Device (EFD)

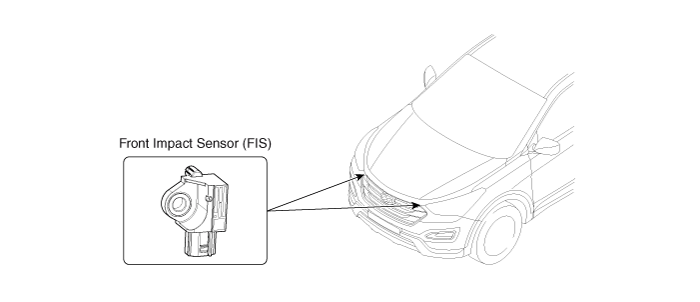

Front Impact Sensor (FIS)

Side Impact Sensor (SIS) / Pressure Side Impact Sensor (P-SIS)


Repair procedures
Component Replacement After Deployment Before doing any SRS repairs, use the GDS to check for DTCs. Refer to the Diagnostic Trouble Code list for repairing of the related DTCs. When the front airbag(s) ...

SRSCM
...
