Hyundai Santa Fe (DM): Balance Shaft & Oil Pump. Components and Components Location - Lubrication System - Engine Mechanical SystemHyundai Santa Fe (DM): Balance Shaft & Oil Pump. Components and Components Location

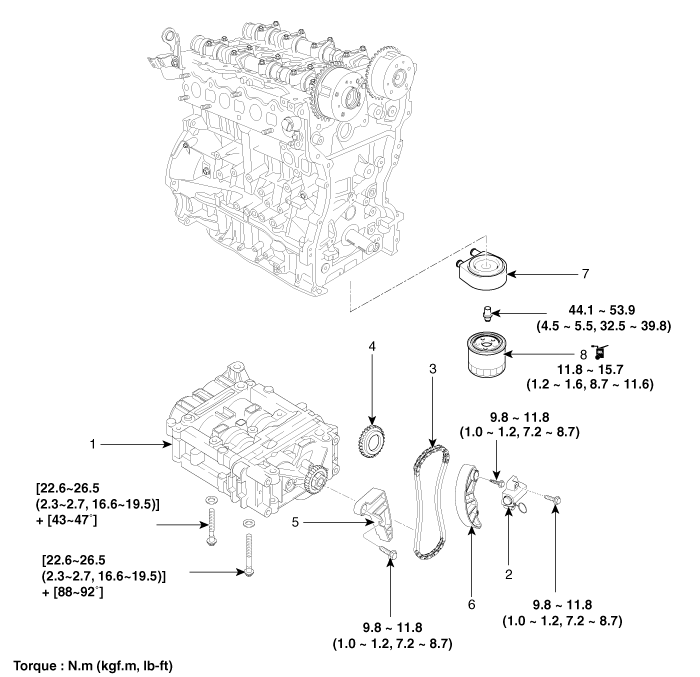

Components

1. Balance shaft & oil pump assembly
2. Balance shaft chain tensioner
3. Balance shaft chain
4. Balance shaft chain sprocket
5. Balance shaft chain guide
6. Balance shaft chain tensioner arm
7. Oil cooler
8. Oil filter


Oil Pan. Repair procedures
Removal 1. Remove the drive belt.   2. Remove the A/C compressor. 3. Remove the A/C compressor bracket (A). 4. Drain the engine oil. 5. Remove the oil pan (A). Insert the blade of SST (09215-3C000) ...

Balance Shaft & Oil Pump. Repair procedures
Removal 1. Remove the timing chain. 2. Install a stopper pin (A) after compressing the balance shaft chain tensioner. 3. Remove the balance shaft chain hydraulic tensioner (B). 4. Remove the balance shaft ...
