Hyundai Santa Fe: Components and Components Location - Cylinder Block - Engine Mechanical SystemHyundai Santa Fe: Components and Components Location

Components

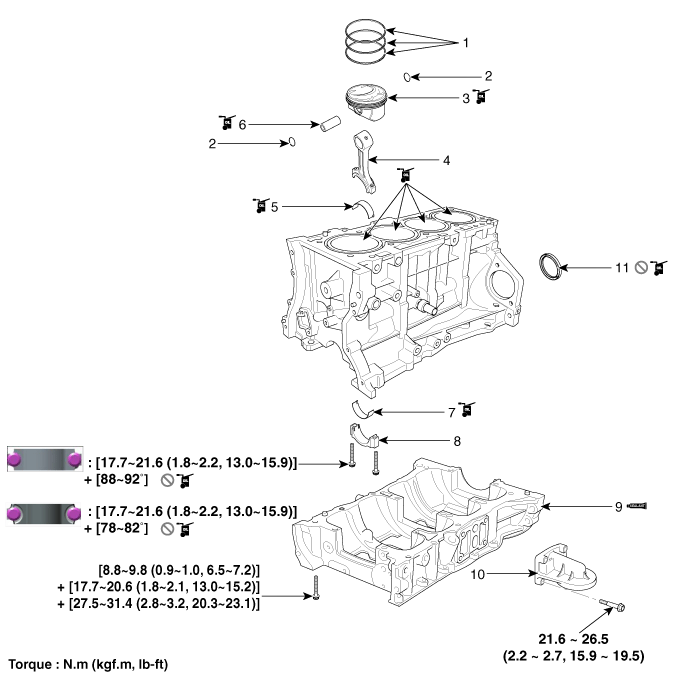

1. Piston ring
2. Snap ring
3. Piston
4. Connecting rod
5. Connecting rod upper bearing
6. Piston pin
7. Connecting rod lower bearing
8. Connecting rod bearing cap
9. Ladder frame
10. Oil filter bracket
11. Crankshaft rear oil seal

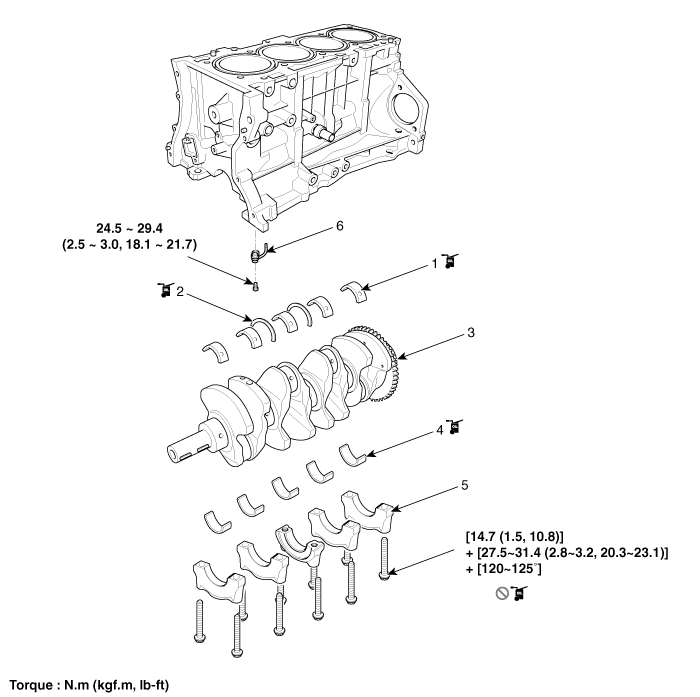

1. Crankshaft upper bearing
2. Thrust bearing
3. Crankshaft
4. Crankshaft lower bearing
5. Main bearing cap
6. Piston cooling oil jet


Drive Plate. Repair procedures
Removal and Installation 1. Remove the automatic transaxle . 2. Remove the drive plate (A) and the adapter plate (B). Tightening torque : 117.7 ~ 127.5 N.m (12 ~ 13 kgf.m, 86.8 ~ 94.0 lb-ft) • Always ...
