Hyundai Santa Fe (DM): Components and Components Location
Components
|

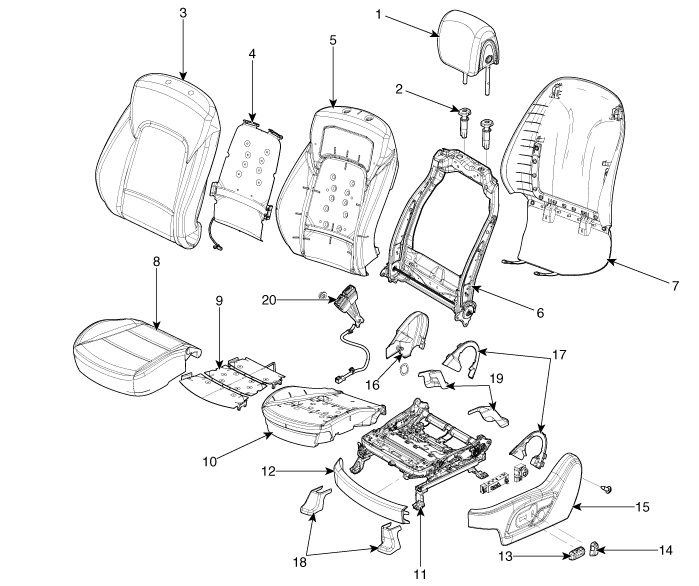

1. Front seat headrest 2. Front seat headrest guide 3. Front seat back cover 4. Front seat back warmer pad 5. Front seat back pad 6. Front seat back frame assembly 7. Front seat back board 8. Front seat cushion cover 9. Front seat cushion warmer pad 10. Front seat cushion pad |
11. Front seat cushion frame assembly 12. Front seat shield center cover 13. Front power seat control switch 14. Front seat recline control switch 15. Front seat shield outer cover 16. Front seat shield inner cover 17. Front inside cover 18. Front seat track front cover 19. Front seat track rear cover 20. Front seat belt buckle |
Front Seat
...
Front Seat Assembly. Components and Components Location
Component Location 1. Front seat assembly ...
